Product Model

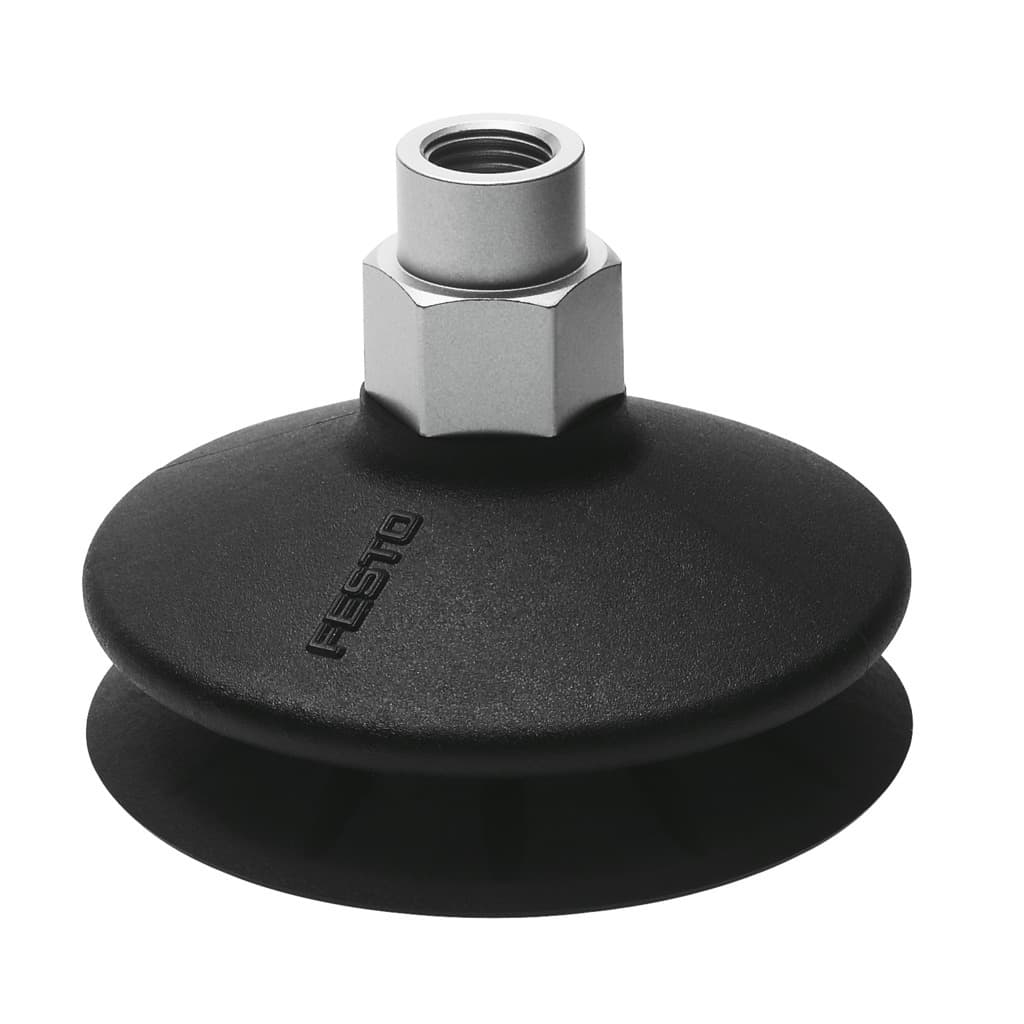

ess-80-bt-g1/4-i
Selling Points
- 1Height Compensator for Precision: The ESS-80-BT-G1/4-I suction cup features a height compensator of 10.5 mm, ensuring accurate positioning and secure grip on workpieces of varying heights.
- 2Interchangeable Design: This suction cup is easily interchangeable, making it a versatile solution for various vacuum applications.
- 3High Suction Volume: With a suction volume of 59,100 cm³, the ESS-80-BT-G1/4-I provides strong and reliable vacuum performance.
- 4Durable Construction: Made from polyurethane suction cups and wrought aluminum alloy screws, this product offers durability and resistance to wear and tear.
- 5Versatile Installation: The ESS-80-BT-G1/4-I can be installed in any position, offering flexibility in different application scenarios.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 10.5mm | Min. workpiece radius | 100mm |
Nominal width | 2.5mm | Suction cup diameter | 80mm |
Suction cup volume | 59.1cm3 | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
Holding force at nominal operating pressure | 237N | Lateral force at nominal operating pressure | 102N |
Product weight | 87.5g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Reddish brown |
Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
Manufacturer ID | 525998 |
Specifications may be subject to change without notice
