Product Model
esv-100-en
Selling Points

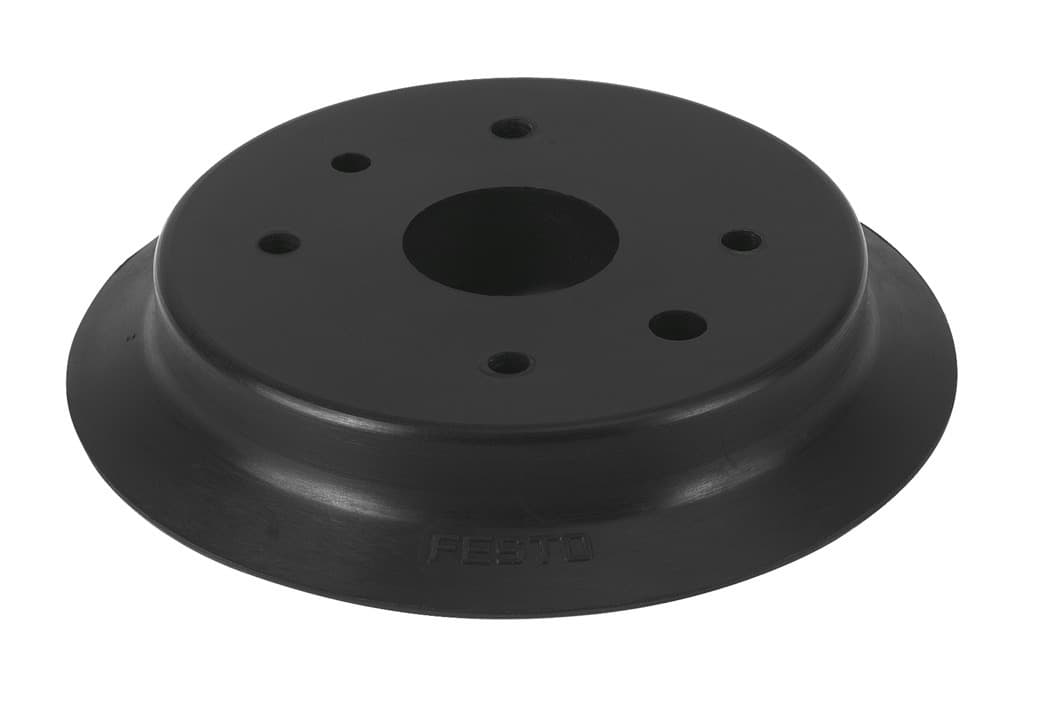

- 1The Festo ESV-100-EN vacuum suction cup features a round, extra-deep design with a suction cup diameter of 100 mm, ensuring a secure grip on workpieces with a minimum radius of 200 mm.
- 2This suction cup operates within a wide temperature range of -30 °C to 180 °C and is compatible with atmospheric air based on ISO 8573-1:2010, making it suitable for various industrial environments.
- 3The ESV-100-EN is RoHS-compliant and made from NBR material, providing excellent durability and resistance to chemicals. It also offers a holding force of 440.8 N at nominal operating pressure.
- 4The suction cup is designed for top mounting and is available in transparent color, ensuring easy visibility and inspection. It is also suitable for use in the food industry, subject to supplementary material information.
- 5With a product weight of 65 g and a shore hardness of 60 +/- 5, the Festo ESV-100-EN is both lightweight and robust, making it an ideal choice for various pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 200mm | Suction cup diameter | 100mm |
Suction cup volume | 79.812cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 440.8N |
Product weight | 65g | Color | Black |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 191047 |
Specifications may be subject to change without notice
