Product Model
esv-100-es
Selling Points

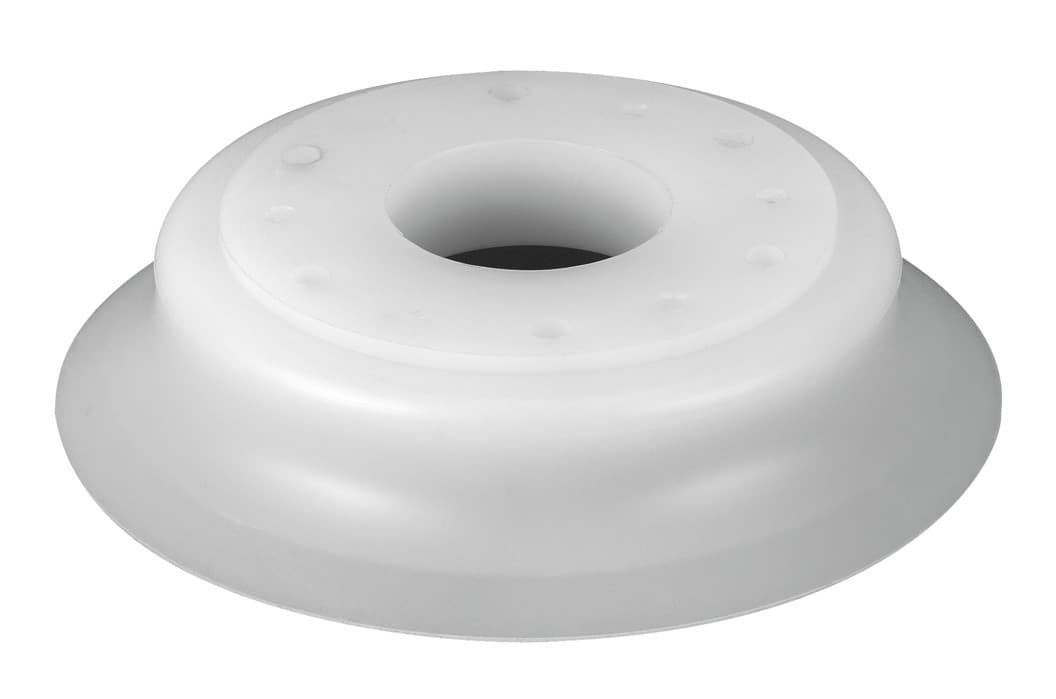

- 1The Festo ESV-100-ES vacuum suction cup is designed with a round, extra-deep bellows shape, ensuring a strong and reliable hold on workpieces.
- 2This suction cup is made from VMQ (silicone) material, which is RoHS-compliant and suitable for use in the food industry.
- 3The ESV-100-ES offers a holding force of 440.8 N at nominal operating pressure, making it suitable for various industrial applications.
- 4The suction cup has a transparent color and a Shore hardness of 50 +/- 5, ensuring durability and ease of use.
- 5The Festo ESV-100-ES is available in a variety of mounting positions, including top mounting, and is compatible with atmospheric air based on ISO 8573-1:2010.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 200mm | Suction cup diameter | 100mm |
Suction cup volume | 79.812cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 440.8N |
Product weight | 65g | Color | Transparent |
Shore hardness | 50 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | VMQ (silicone) | Manufacturer ID | 191049 |
Specifications may be subject to change without notice
