Product Model
esv-100-gt

Selling Points
- 1The Festo ESV-100-GT is a high-performance electric valve engineered for precise control, ensuring reliable operation in various industrial applications.
- 2With its advanced design, the ESV-100-GT offers fast switching times and high flow rates, making it ideal for applications requiring quick response and high fluid dynamics.
- 3The valve features robust construction and durable materials, ensuring long-lasting performance even in demanding environments.
- 4The ESV-100-GT is designed with ease of integration in mind, offering a range of interfaces and mounting options to fit seamlessly into your existing systems.
- 5This electric valve supports a wide range of fluids and pressures, making it versatile for use in various industrial processes from manufacturing to automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|

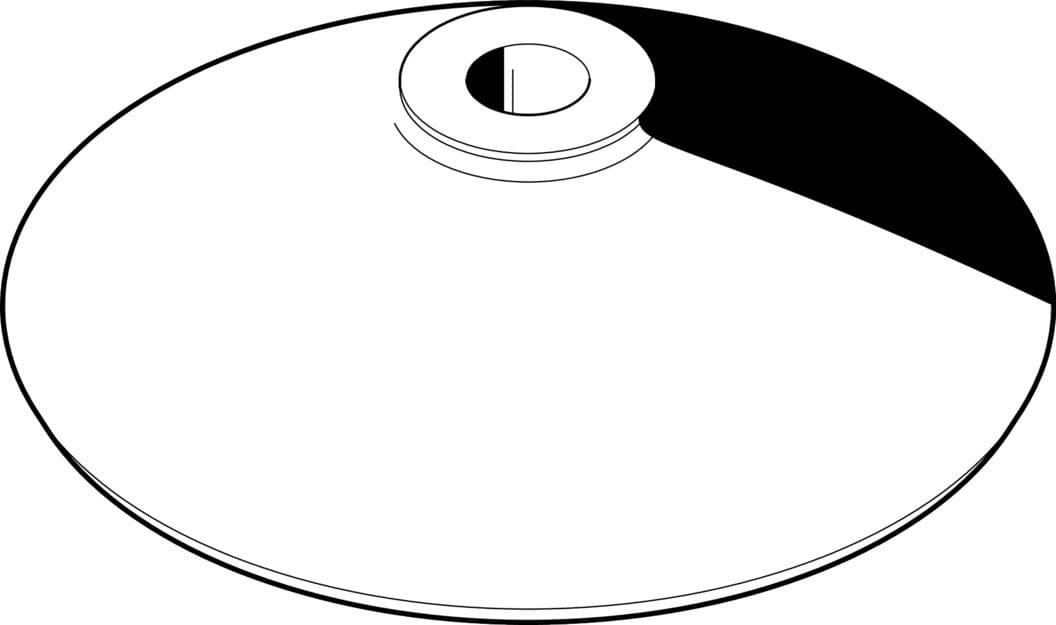

Suction cup holder height compensator | 9mm | Min. workpiece radius | 135mm |
Suction cup diameter | 100mm | Suction cup volume | 53.9cm3 |
Mounting position | Any | Structural design | Round, bell-shaped |
Symbol | 00991485 | Suction cup shape | Round, deep |
Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 375N |
Holding force at nominal operating pressure | 100N | Lateral force at nominal operating pressure | 183N |
Product weight | 58.9g | Type of mounting | Via vacuum connection |
Color | Reddish brown | Shore hardness | 72 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
Manufacturer ID | 526005 |
Specifications may be subject to change without notice
