Product Model
esv-150-sn
Selling Points

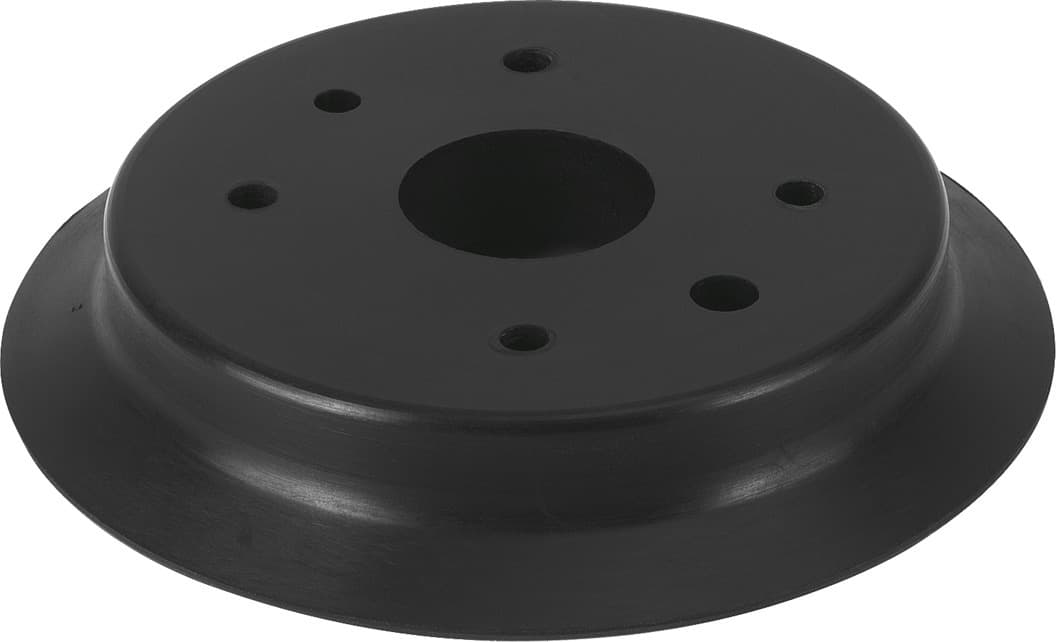

- 1High Holding Force: The Festo ESV-150-SN vacuum suction cup boasts a robust holding force of 900N, ensuring reliable grip on various workpieces.
- 2Ergonomic Design: With a flat NBR pad diameter of 150mm, this suction cup is designed for easy handling and precise positioning.
- 3Easy Replacement: The ESV-150-SN is a wearing part, making it easily replaceable when worn out, reducing downtime and maintenance costs.
- 4Versatile Mounting: Available for any assembly position, this suction cup can be mounted on top or in any other desired orientation.
- 5Food-Safe Option: The Festo ESV-150-SN is food-safe, making it suitable for applications in the food and beverage industry where cleanliness is paramount.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 480mm | Suction cup diameter | 150mm |
Suction cup volume | 173.826cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 900N |
Product weight | 361g | Color | Black |
Shore hardness | 50 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 191011 |
Specifications may be subject to change without notice
