Product Model
esv-200-sf
Selling Points

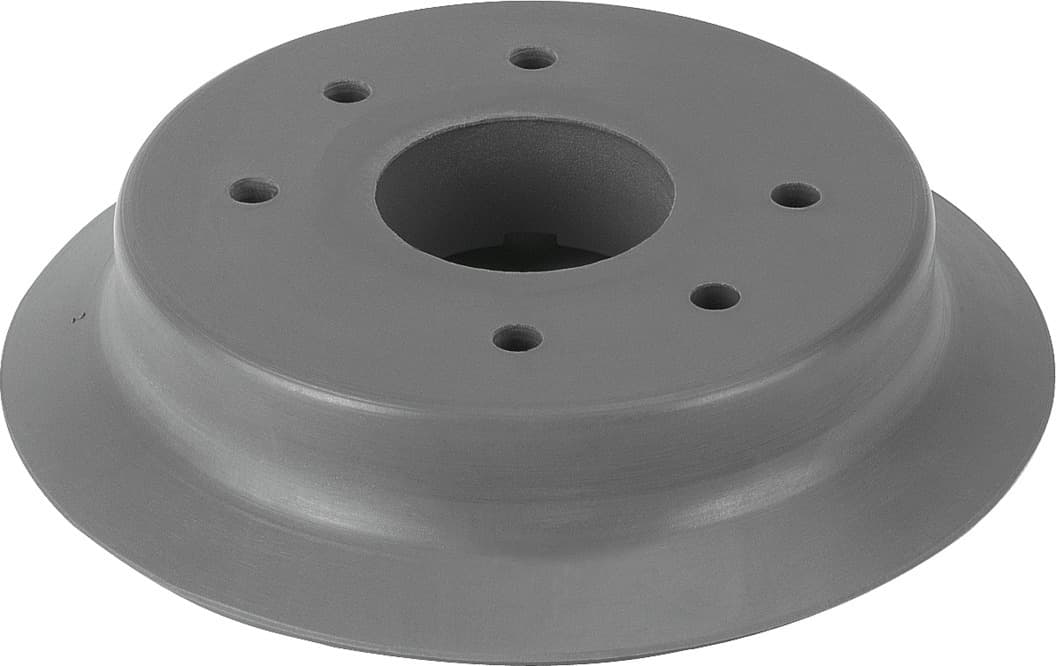

- 1The Festo ESV-200-SF suction cup features a round, flat shape with a diameter of 200 mm, ensuring a secure grip on various workpieces.
- 2This suction cup operates within a wide temperature range of -10 °C to 200 °C, making it suitable for diverse industrial environments.
- 3With a nominal operating pressure of -0.07 MPa and a holding force of 1610 N, the ESV-200-SF provides robust holding power for your applications.
- 4The ESV-200-SF is made from FPM (Fluororubber) material, which is RoHS-compliant and offers excellent resistance to chemicals and abrasion.
- 5This suction cup is designed for use in the food industry and meets LABS (PWIS) conformity standards, ensuring cleanliness and safety in food processing environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 680mm | Suction cup diameter | 200mm |
Suction cup volume | 245.454cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 1610N |
Product weight | 840g | Color | Gray |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | FPM | Manufacturer ID | 191018 |
Specifications may be subject to change without notice
