Product Model
esv-200-su
Selling Points

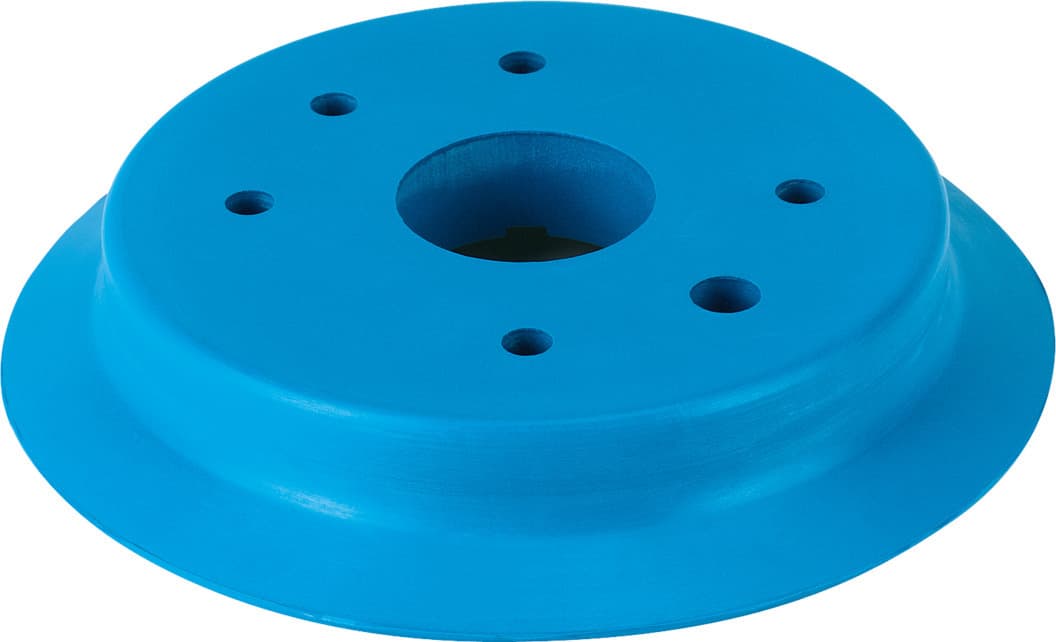

- 1The Festo 200mm Flat PUR Suction Cup ESV-200-SU is designed with a flat, 200mm diameter pad made from high-quality PUR material, ensuring excellent durability and resistance to wear and tear.
- 2This suction cup features a holding force of 1610 N at nominal operating pressure, making it suitable for a wide range of applications that require strong and reliable vacuum connections.
- 3The ESV-200-SU is available in a variety of configurations, including round and flat shapes, catering to different mounting needs and ensuring versatility in various industrial settings.
- 4The suction cup is easily replaceable, reducing maintenance costs and downtime. Its simple design allows for quick installation and removal, enhancing operational efficiency.
- 5The Festo ESV-200-SU operates within a temperature range of -30°C to +200°C, making it suitable for use in diverse environments and applications, from cold storage to high-temperature manufacturing processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 680mm | Suction cup diameter | 200mm |
Suction cup volume | 245.454cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 1610N |
Product weight | 840g | Color | Blue |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | PUR | Manufacturer ID | 191016 |
Specifications may be subject to change without notice
