Product Model
esv-20-ef
Selling Points

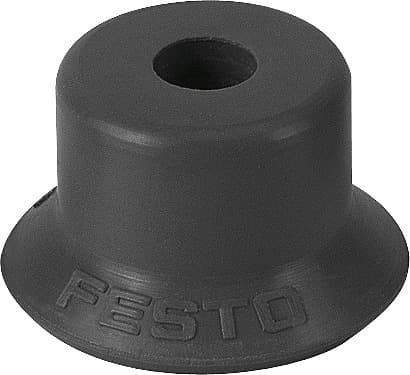

- 1The Festo ESV-20-EF vacuum suction cup features a 20mm diameter and a 0.722 cm³ volume, making it suitable for a wide range of applications.
- 2With a holding force of 17N at nominal operating pressure, this suction cup ensures reliable and efficient use in various industrial settings.
- 3The ESV-20-EF is designed to be food-safe, making it an excellent choice for applications in the food industry. See supplementary material information for details.
- 4This suction cup operates within a wide ambient temperature range of -10 °C to 200 °C, ensuring flexibility in different environmental conditions.
- 5The Festo ESV-20-EF is made from FPM material, which is RoHS-compliant and durable, ensuring long-lasting performance in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 30mm | Suction cup diameter | 20mm |
Suction cup volume | 0.722cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 17N |
Product weight | 1.6g | Color | Gray |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | FPM | Manufacturer ID | 191026 |
Specifications may be subject to change without notice
