Product Model
esv-20-es
Selling Points

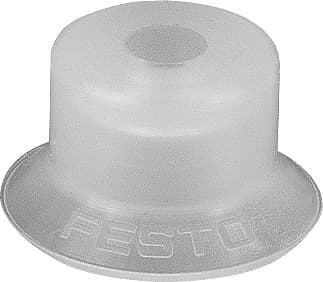

- 1The Festo ESV-20-ES vacuum suction cup features a round, extra deep shape with a 20 mm diameter, ensuring a secure grip on various workpieces.
- 2With a suction cup volume of 0.722 cm³, this suction cup provides a strong and reliable vacuum, making it suitable for diverse applications.
- 3The ESV-20-ES is designed to operate in a wide temperature range of -30 to 180 °C, making it versatile for use in different environments.
- 4This suction cup is food-safe and free of copper and PTFE, ensuring it meets high standards of cleanliness and material safety.
- 5The ESV-20-ES is lightweight at 1.6 grams and has a transparent color, making it easy to handle and visually inspect during use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 30mm | Suction cup diameter | 20mm |
Suction cup volume | 0.722cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 17N |
Product weight | 1.6g | Color | Transparent |
Shore hardness | 50 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | VMQ (silicone) | Manufacturer ID | 191025 |
Specifications may be subject to change without notice
