Product Model
esv-30-ef
Selling Points

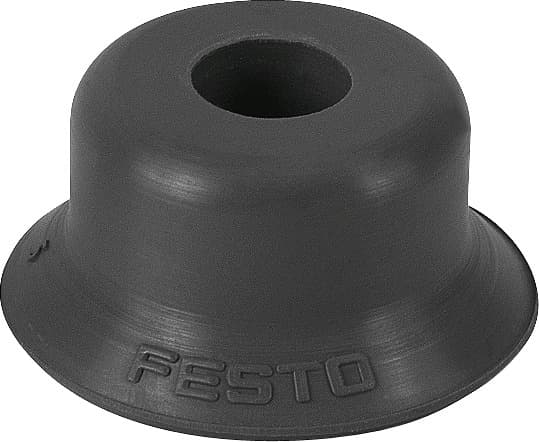

- 1The Festo ESV-30-EF is a top-tier vacuum suction cup designed for ESD (Electrostatic Discharge) applications, ensuring reliable and safe handling of sensitive components.
- 2This suction cup can be mounted in any position, offering flexibility in various industrial settings. Its top connection position makes it easy to integrate into your existing systems.
- 3Made from FPM material, the ESV-30-EF is durable and resistant to corrosion, ensuring long-lasting performance in demanding environments.
- 4The suction cup operates effectively within a broad temperature range of -10°C to 200°C, making it suitable for diverse industrial applications.
- 5With a holding force of 37.2 N at nominal operating pressure, the ESV-30-EF provides strong and reliable grip on workpieces, ensuring secure handling and processing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 50mm | Suction cup diameter | 30mm |
Suction cup volume | 1.952cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 37.2N |
Product weight | 2.9g | Color | Gray |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | FPM | Manufacturer ID | 191030 |
Specifications may be subject to change without notice
