Product Model
esv-30-en
Selling Points

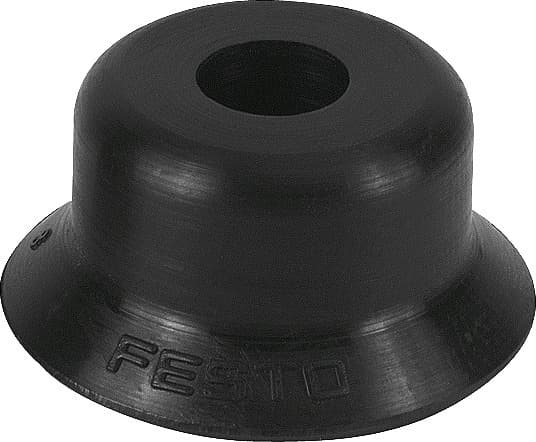

- 1The Festo ESV-30-EN suction cup features a round, extra-deep design with a 30 mm diameter, ensuring a secure grip on various workpieces.
- 2This suction cup operates within a wide temperature range of -10°C to 70°C, making it suitable for diverse industrial environments.
- 3With a holding force of 37.2 N at nominal operating pressure, the ESV-30-EN provides robust retention and stability during vacuum operations.
- 4The suction cup is made from NBR material, which is free of copper and PTFE, ensuring compliance with RoHS standards and safety in food industry applications.
- 5The ESV-30-EN is easy to assemble and replace, featuring a simple connection position on top, making it convenient for various mounting configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 50mm | Suction cup diameter | 30mm |
Suction cup volume | 1.952cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 37.2N |
Product weight | 2.9g | Color | Black |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 191027 |
Specifications may be subject to change without notice
