Product Model
esv-30-es
Selling Points

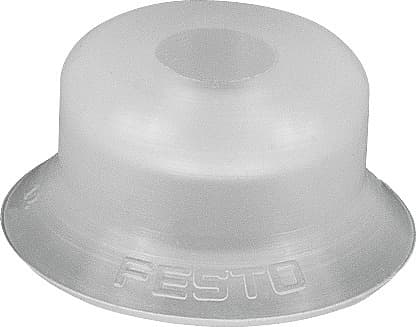

- 1The Festo ESV-30-ES is a 30mm silicon suction cup designed for reliable vacuum applications. It features a round, extra-deep shape and a transparent color, ensuring clear visibility and efficient operation.
- 2This suction cup offers a holding force of 37.2 N at nominal operating pressure, making it suitable for gripping various workpieces securely. It operates within an ambient temperature range of -30 to 180°C.
- 3The ESV-30-ES is made from VMQ (silicon) material, which is free of copper and PTFE, ensuring food safety and compliance with RoHS standards. It is also easy to clean and maintain.
- 4The suction cup has a volume of 1.952 cm³ and a minimum workpiece radius of 50 mm. It can be installed in any position and is compatible with atmospheric air based on ISO 8573-1:2010.
- 5Weighing only 2.9 grams, the Festo ESV-30-ES is lightweight yet robust, making it ideal for various industrial applications where precision and reliability are crucial.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 50mm | Suction cup diameter | 30mm |
Suction cup volume | 1.952cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 37.2N |
Product weight | 2.9g | Color | Transparent |
Shore hardness | 50 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | VMQ (silicone) | Manufacturer ID | 191029 |
Specifications may be subject to change without notice
