Product Model

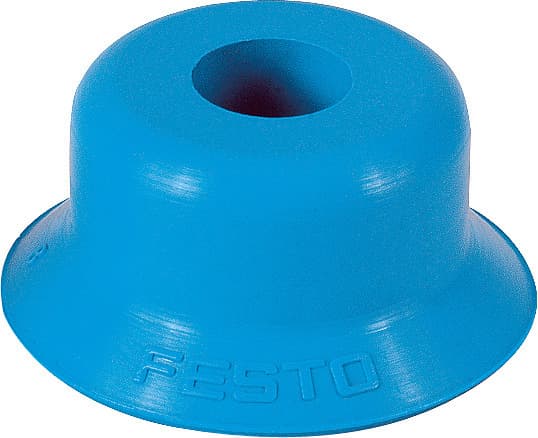

esv-30-eu
Selling Points
- 1High Retention Force: The Festo ESV-30-EU suction cup offers a robust retention force of 37.2N, ensuring secure grip on workpieces.
- 2Food-Safe Material: Made from Polyurethane (PUR), this suction cup is food-safe and suitable for applications in the food industry.
- 3Versatile Assembly: The suction cup can be positioned on top of the workpiece and is compatible with any assembly position, providing flexibility in use.
- 4Durable Design: With a Shore hardness of 60 +/- 5, the ESV-30-EU is designed to withstand various ambient temperatures from -20 to 60°C.
- 5Easy Replacement: The suction cup is a wearing part, making it easily replaceable when needed, ensuring minimal downtime in production processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 50mm | Suction cup diameter | 30mm |
Suction cup volume | 1.952cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 37.2N |
Product weight | 2.9g | Color | Blue |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | PUR | Manufacturer ID | 191028 |
Specifications may be subject to change without notice
