Product Model
esv-40-gt
Selling Points

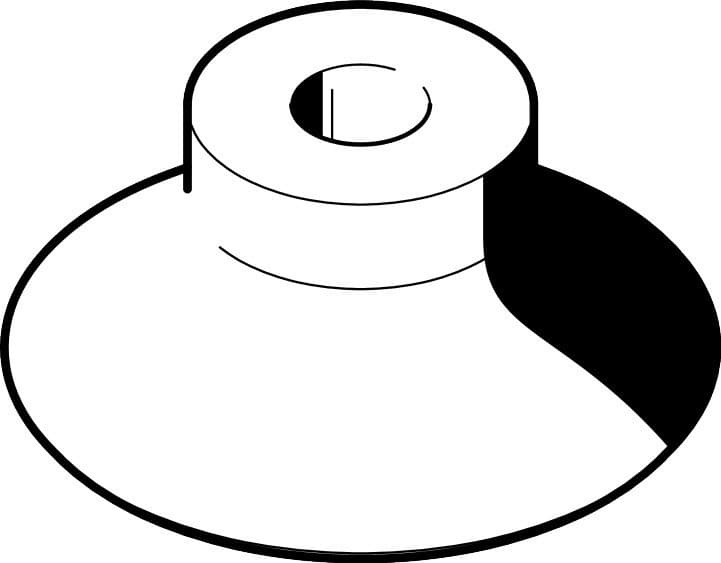

- 1The Festo ESV-40-GT vacuum suction cup features a round, bell-shaped design with a diameter of 40 mm, ensuring a secure grip on various workpieces.
- 2This suction cup is made from Vulkollan material, which is copper-free and PTFE-free, making it compliant with RoHS standards for environmental safety.
- 3The ESV-40-GT offers a height compensator of 5.5 mm, allowing for precise positioning and stability on different workpiece radii, starting from 35 mm.
- 4With an operating pressure range of -0.95 to 0 bar and a nominal operating pressure of -0.7 bar, this suction cup is versatile for various pneumatic applications.
- 5The Festo ESV-40-GT is designed for easy interchangeability, making it a convenient solution for maintenance and replacement in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 5.5mm | Min. workpiece radius | 35mm |
Suction cup diameter | 40mm | Suction cup volume | 5.4cm3 |
Mounting position | Any | Structural design | Round, bell-shaped |
Symbol | 00991485 | Suction cup shape | Round, deep |
Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 54N |
Holding force at nominal operating pressure | 64N | Lateral force at nominal operating pressure | 20N |
Product weight | 5.7g | Type of mounting | Via vacuum connection |
Color | Reddish brown | Shore hardness | 72 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
Manufacturer ID | 526001 |
Specifications may be subject to change without notice
