esv-50-bt

Selling Points

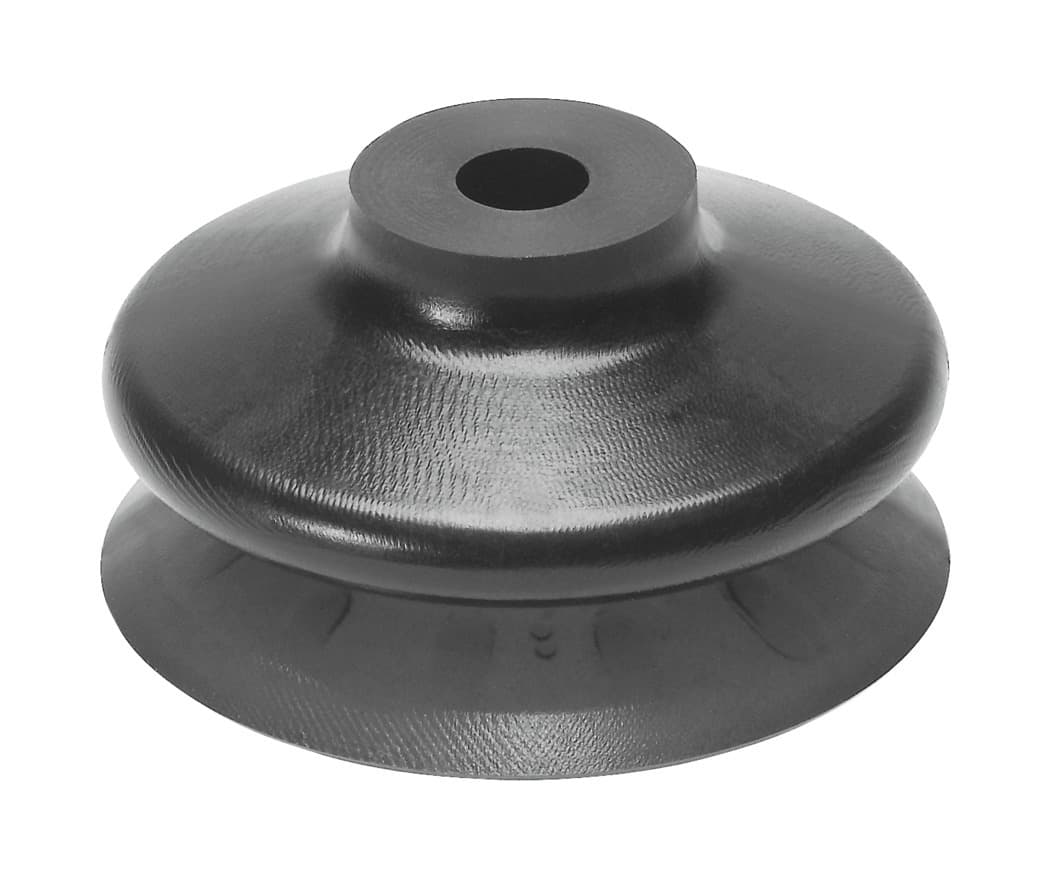

• 1The Festo ESV-50-BT vacuum suction cup features a round, bellows design with 1.5 convolutions, ensuring a secure and reliable grip on various workpieces. Its diameter is 50 mm, and it has a minimum workpiece radius of 40 mm.
• 2This suction cup is designed to operate in a wide temperature range from -10°C to 80°C and can handle atmospheric air based on ISO 8573-1:2010. It is also free of copper and PTFE, making it RoHS compliant.
• 3The ESV-50-BT offers a high holding force of 100 N at nominal operating pressure and a lateral force of 39 N. It is also equipped with a height compensator for the suction-cup holder, providing 10 mm of adjustment.
• 4The product is made from Vulkollan®, a high-quality material known for its durability and resistance to wear. It is easy to replace and maintain, ensuring minimal downtime in your operations.
• 5Available in various mounting types, including via vacuum port, the Festo ESV-50-BT is versatile and can be installed in any position. It weighs 16.2 grams and has a Shore hardness of 72 ± 5.
