Product Model
esv-50-cn
Selling Points

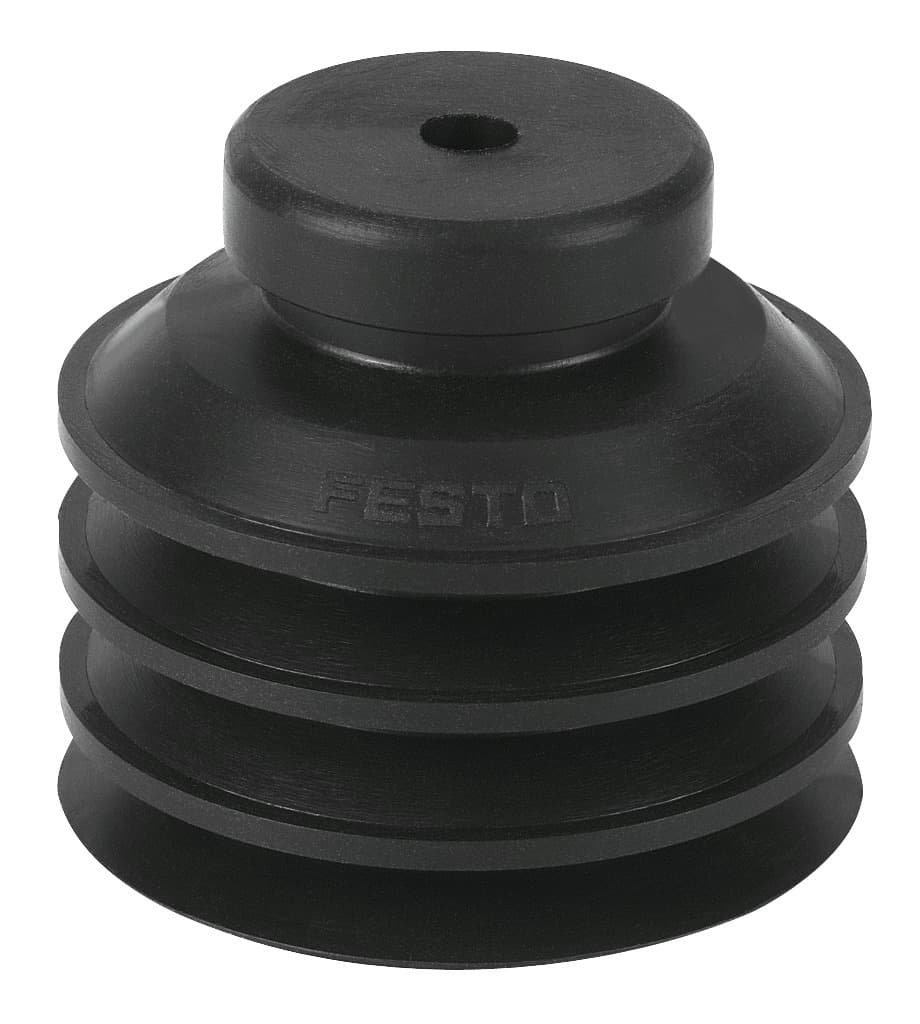

- 1The Festo ESV-50-CN vacuum suction cup is designed with a 50mm diameter and 3.5 convolutions, ensuring a strong and reliable grip.
- 2Made from high-quality NBR material, this suction cup is RoHS-compliant and suitable for use in the food industry.
- 3With a holding force of 63.4N at nominal operating pressure, the ESV-50-CN provides consistent and robust performance.
- 4The suction cup features height compensation of 17.5mm and a minimum workpiece radius of 180mm, making it versatile for various applications.
- 5The product is available in black color with a Shore hardness of 50 +/- 5, ensuring durability and resistance to wear and tear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 17.5mm | Min. workpiece radius | 180mm |
Suction cup diameter | 50mm | Suction cup volume | 38.92cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 3.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
Holding force at nominal operating pressure | 63.4N | Product weight | 21.3g |
Color | Black | Shore hardness | 50 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | NBR |
Manufacturer ID | 191077 |
Specifications may be subject to change without notice
