Product Model
esv-50-gt
Selling Points

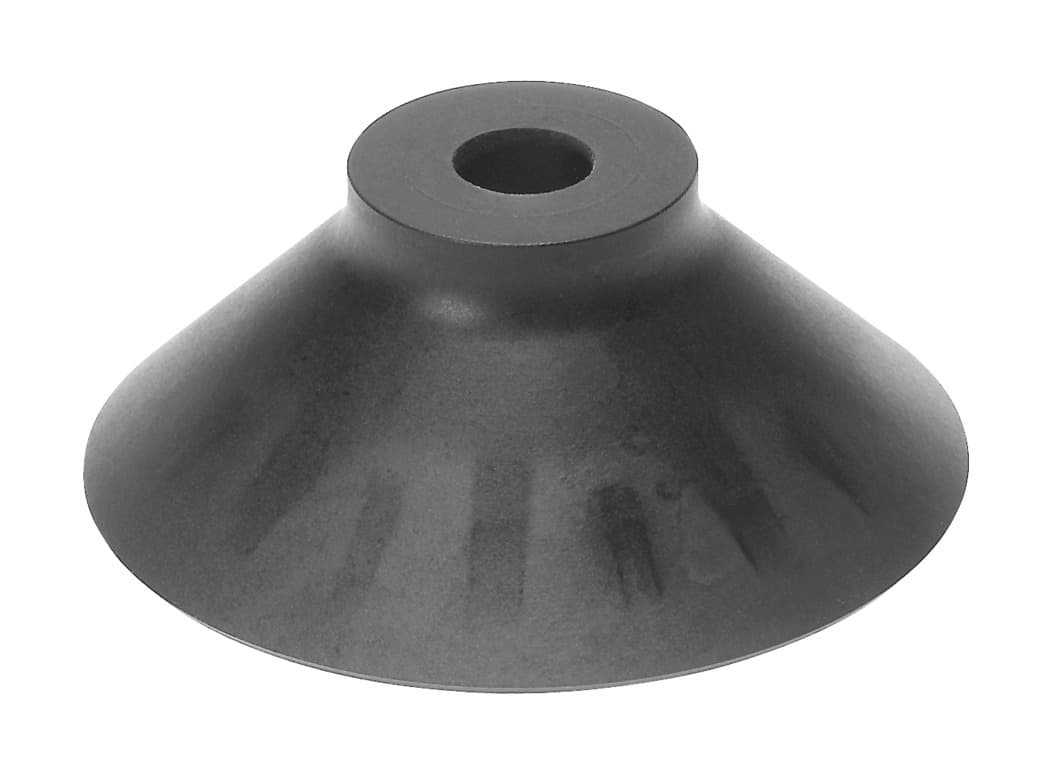

- 1The Festo ESV-50-GT vacuum suction cup is designed with a round, bellows shape, providing a secure and efficient grip. Its M6 threaded pneumatic port ensures easy connection to your pneumatic system.
- 2This suction cup is made from high-quality polyurethane, ensuring durability and resistance to various operating temperatures from -10°C to +80°C.
- 3The ESV-50-GT offers a holding force of 97N, making it suitable for a wide range of applications, from light to medium-duty tasks.
- 4The Festo ESV-50-GT is RoHS compliant, free of copper and PTFE, and meets stringent standards for corrosion resistance, making it safe for use in various environments.
- 5This suction cup is part of the ESV series, known for its ease of interchangeability and compatibility with Festo's ESS suction cup system, ensuring seamless integration into your existing setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 8mm | Min. workpiece radius | 40mm |
Suction cup diameter | 50mm | Suction cup volume | 11.2cm3 |
Mounting position | Any | Structural design | Round, bell-shaped |
Symbol | 00991485 | Suction cup shape | Round, deep |
Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 97N |
Holding force at nominal operating pressure | 97N | Lateral force at nominal operating pressure | 30N |
Product weight | 9.2g | Type of mounting | Via vacuum connection |
Color | Reddish brown | Shore hardness | 72 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
Manufacturer ID | 526002 |
Specifications may be subject to change without notice
