Product Model
esv-60-gt
Selling Points
- 1The Festo ESV-60-GT offers a robust holding force of 134N, ensuring secure grip on various workpieces.

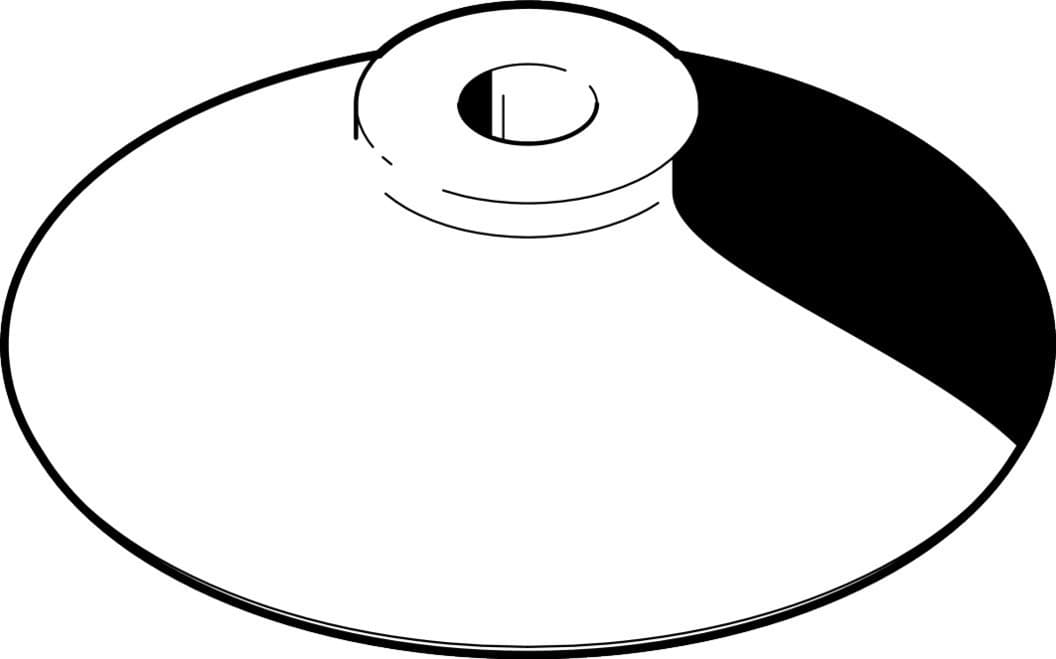

- 2With a round, bell-shaped design and a diameter of 60mm, this suction cup is easily interchangeable and suitable for a wide range of applications.
- 3Operable in ambient temperatures from -10°C to +80°C, making it ideal for diverse industrial environments.
- 4Made from Vulkollan material, free of copper and PTFE, and compliant with RoHS standards, ensuring safety and sustainability.
- 5Featuring a 6mm height compensator for the suction-cup holder, this product simplifies installation and ensures optimal performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 6mm | Min. workpiece radius | 75mm |
Suction cup diameter | 60mm | Suction cup volume | 11.3cm3 |
Mounting position | Any | Structural design | Round, bell-shaped |
Symbol | 00991485 | Suction cup shape | Round, deep |
Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 134N |
Holding force at nominal operating pressure | 134N | Lateral force at nominal operating pressure | 37N |
Product weight | 10.7g | Type of mounting | Via vacuum connection |
Color | Reddish brown | Shore hardness | 72 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
Manufacturer ID | 526003 |
Specifications may be subject to change without notice
