Product Model

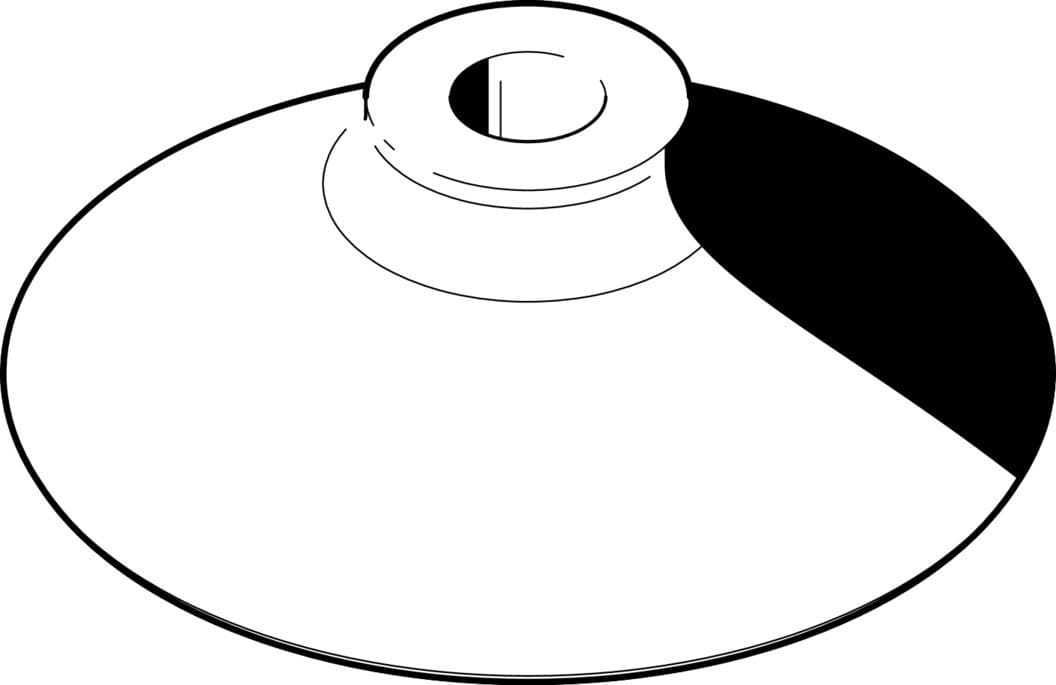

esv-80-gt
Selling Points
- 1The Festo ESV-80-GT suction cup boasts a 7.5mm height compensator, ensuring precise positioning and stability on various workpieces.
- 2With a suction cup diameter of 80mm and a volume of 28.6cm³, this cup offers robust holding forces and a wide range of applications.
- 3The round, bell-shaped design of the ESV-80-GT provides deep suction, making it suitable for gripping and holding various materials effectively.
- 4Made from Vulkollan material, the Festo ESV-80-GT is free of copper and PTFE, ensuring RoHS compliance and durability in harsh environments.
- 5This suction cup operates within a wide ambient temperature range of -10°C to 80°C and can withstand operating pressures from -0.95 to 0 bar, making it versatile for diverse industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 7.5mm | Min. workpiece radius | 100mm |
Suction cup diameter | 80mm | Suction cup volume | 28.6cm3 |
Mounting position | Any | Structural design | Round, bell-shaped |
Symbol | 00991485 | Suction cup shape | Round, deep |
Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 245N |
Holding force at nominal operating pressure | 245N | Lateral force at nominal operating pressure | 99N |
Product weight | 30.9g | Type of mounting | Via vacuum connection |
Color | Reddish brown | Shore hardness | 72 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
Manufacturer ID | 526004 |
Specifications may be subject to change without notice
