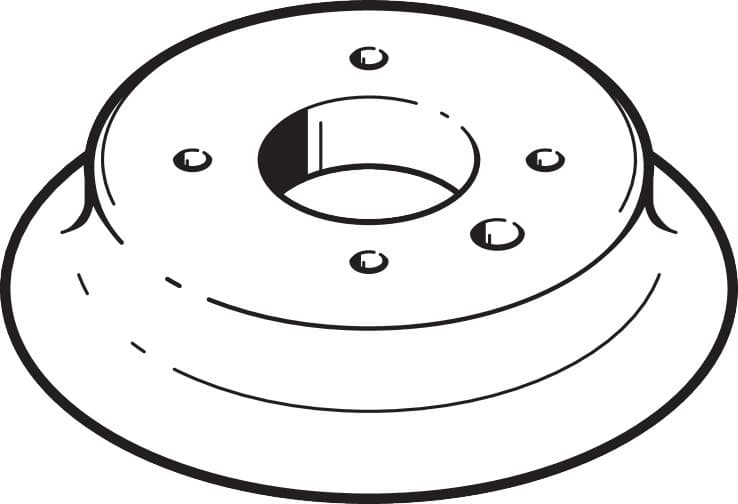

Product Model
esv-80-ss
Selling Points
- 1The Festo ESV-80-SS vacuum suction cup is designed to operate in a wide temperature range from -30°C to 180°C, making it suitable for various industrial applications.
- 2Constructed from high-quality silicone, this suction cup offers excellent durability and resistance to chemicals, ensuring reliable performance in harsh environments.
- 3Available in both round and flat shapes, the ESV-80-SS provides versatility in its mounting options, allowing for easy integration into different systems.
- 4Equipped with an M10 threaded pneumatic port, this suction cup ensures secure connections and efficient vacuum operation.
- 5The ESV-80-SS meets the standards for use in the food industry, as per manufacturer's declaration, ensuring cleanliness and safety in food processing environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 400mm | Suction cup diameter | 80mm |
Suction cup volume | 19.312cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 309.7N |
Product weight | 33g | Color | Transparent |
Shore hardness | 50 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | VMQ (silicone) | Manufacturer ID | 191005 |
Specifications may be subject to change without notice
