Product Model
esv-80-su
Selling Points

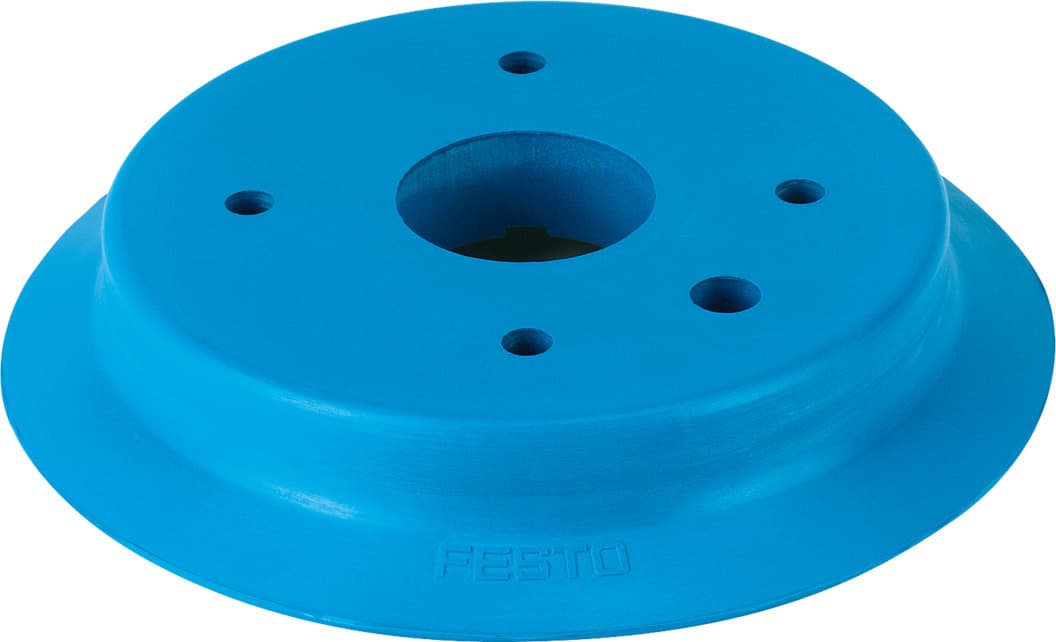

- 1The Festo ESV-80-SU vacuum suction cup features a round, flat shape with a diameter of 80 mm, ensuring a secure grip on various workpieces.
- 2This suction cup is made from high-quality PUR material, which is RoHS-compliant and suitable for use in the food industry, as indicated by its compliance with ISO 8573-1:2010.
- 3The ESV-80-SU offers a holding force of 309.7 N at nominal operating pressure, providing reliable and consistent performance in various applications.
- 4The suction cup is designed to operate within an ambient temperature range of -20 °C to 60 °C, making it versatile for use in different environments.
- 5The Festo ESV-80-SU is available in blue color and weighs 33 grams, making it easy to handle and integrate into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 400mm | Suction cup diameter | 80mm |
Suction cup volume | 19.312cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 309.7N |
Product weight | 33g | Color | Blue |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | PUR | Manufacturer ID | 191004 |
Specifications may be subject to change without notice
