Product Model

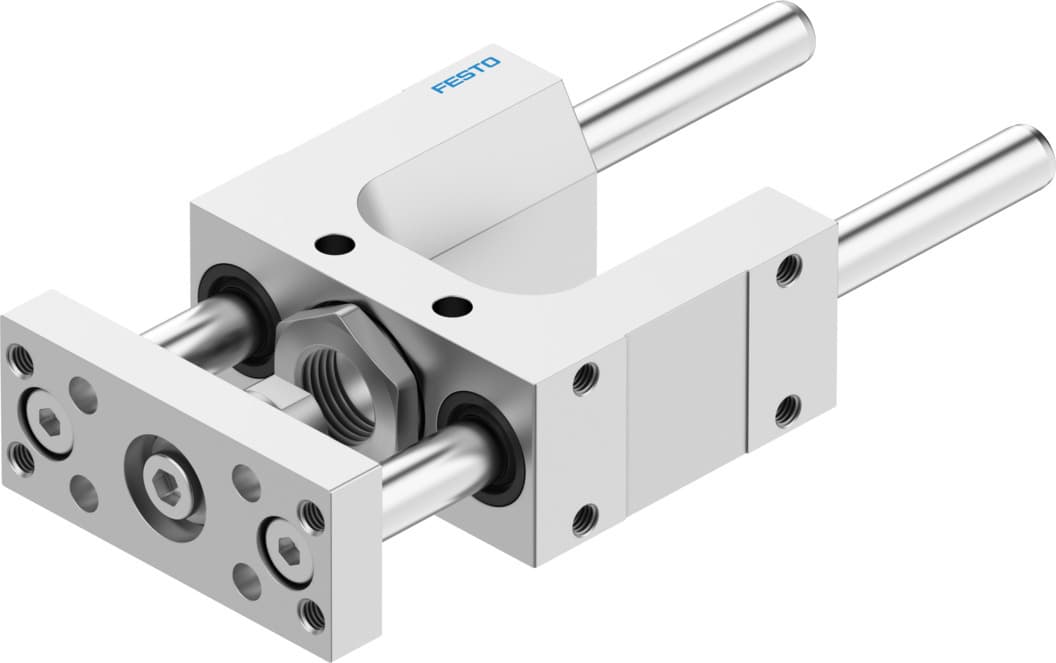

fen-12/16-50-kf

Selling Points
- 1The Festo FEN-12/16-50-KF guide unit is designed for high precision automation, ensuring accurate and reliable performance in various industrial applications.
- 2This guide unit is part of Festo's extensive range of pneumatic solutions, offering a versatile and efficient way to manage motion control systems.
- 3Ideal for use in manufacturing, robotics, and process automation, the FEN-12/16-50-KF provides consistent and precise movement, enhancing overall system efficiency.
- 4The guide unit is available from authorized distributors and can be purchased new or used, ensuring a wide range of options for different needs and budgets.
- 5With its robust design and durable construction, the Festo FEN-12/16-50-KF guide unit is a reliable choice for demanding industrial environments, offering long-lasting performance and minimal maintenance requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Size | 12/16 | Stroke | 50mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 520N | Max. force Fy static | 830N |
Max. force Fz | 520N | Max. force Fz static | 830N |
Max. torque Mx | 12Nm | Max. static moment Mx | 20Nm |
Max. torque My | 7Nm | Max. static moment My | 12Nm |
Max. torque Mz | 7Nm | Max. static moment Mz | 12Nm |
Displacement force | 15N | Moving mass | 221g |
Product weight | 489g | Type of mounting | With internal thread |
Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
Manufacturer ID | 8204025 |
Specifications may be subject to change without notice
