Product Model

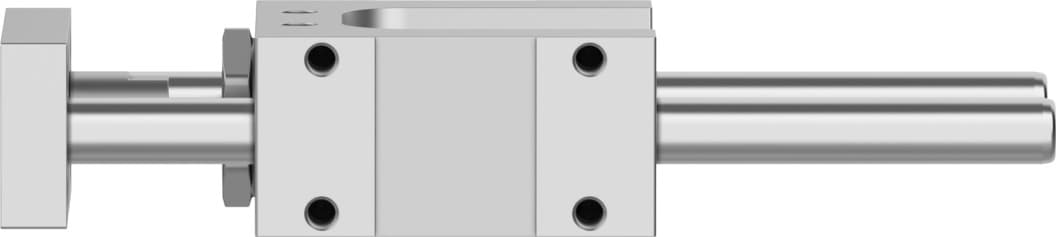

fen-12/16-80-kf
Selling Points
- 1The Festo FEN-12/16-80-KF guide unit is engineered for high precision, ensuring accurate and reliable movement in automation systems.
- 2This guide unit is suitable for a wide range of applications, including industrial automation, robotics, and precision machinery.
- 3Constructed from durable materials, the FEN-12/16-80-KF ensures long-lasting performance and minimal maintenance.
- 4Designed with standardized interfaces, the guide unit integrates seamlessly with other Festo components, simplifying system setup.
- 5With its advanced design, the FEN-12/16-80-KF offers improved performance and efficiency in complex automation tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12/16 | Stroke | 80mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 520N | Max. force Fy static | 830N |
Max. force Fz | 520N | Max. force Fz static | 830N |
Max. torque Mx | 12Nm | Max. static moment Mx | 20Nm |
Max. torque My | 7Nm | Max. static moment My | 12Nm |
Max. torque Mz | 7Nm | Max. static moment Mz | 12Nm |
Displacement force | 15N | Moving mass | 257g |
Product weight | 525g | Type of mounting | With internal thread |
Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
Manufacturer ID | 8204026 |
Specifications may be subject to change without notice
