Product Model

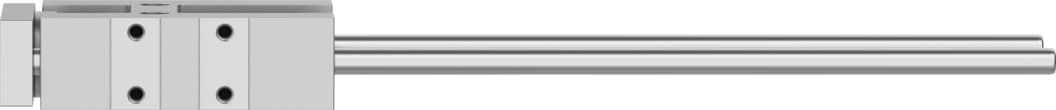

fen-20-250-kf
Selling Points
- 1The FEN-20-250-KF guide unit features a recirculating ball bearing guide, ensuring smooth and precise movement over a stroke length of 250 mm.
- 2This guide unit is designed for mounting via female thread, offering flexibility in installation and integration with various Festo components.
- 3The FEN-20-250-KF operates within an ambient temperature range of -20 °C to 80 °C, making it suitable for a wide range of industrial environments.
- 4With a basic weight of 828 grams and an additional weight of 12 grams per 10 mm stroke, this guide unit is both lightweight and efficient.
- 5The FEN-20-250-KF is RoHS-compliant, ensuring that it meets the highest standards of environmental sustainability and regulatory compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 20 | Stroke | 250mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 520N | Max. force Fy static | 830N |
Max. force Fz | 520N | Max. force Fz static | 830N |
Max. torque Mx | 15Nm | Max. static moment Mx | 24Nm |
Max. torque My | 20Nm | Max. static moment My | 31Nm |
Max. torque Mz | 20Nm | Max. static moment Mz | 31Nm |
Displacement force | 15N | Moving mass | 569g |
Product weight | 1128g | Type of mounting | With internal thread |
Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
Manufacturer ID | 8204032 |
Specifications may be subject to change without notice
