Product Model

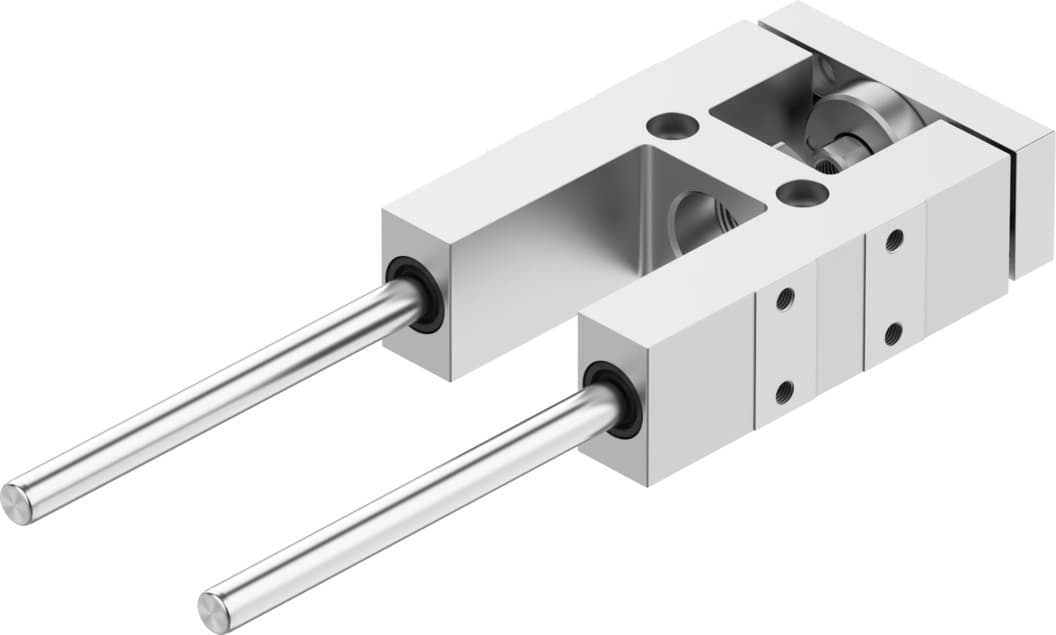

fen-25-100-kf
Selling Points
- 1The FEN-25-100-KF guide unit features a recirculating ball bearing guide, ensuring smooth and precise movement in a wide range of strokes from 2 mm to 250 mm.
- 2This guide unit is designed for various mounting positions, offering flexibility in installation and integration with Festo's pneumatic systems.
- 3The FEN-25-100-KF operates within an ambient temperature range of -20 °C to 80 °C, making it suitable for diverse industrial environments.
- 4With a basic weight of 813 grams and an additional weight of 12 grams per 10 mm stroke, this guide unit is both lightweight and efficient.
- 5The FEN-25-100-KF is constructed from RoHS-compliant materials, ensuring compliance with environmental regulations and maintaining high product quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Stroke | 100mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 520N | Max. force Fy static | 830N |
Max. force Fz | 520N | Max. force Fz static | 830N |
Max. torque Mx | 15Nm | Max. static moment Mx | 24Nm |
Max. torque My | 20Nm | Max. static moment My | 31Nm |
Max. torque Mz | 20Nm | Max. static moment Mz | 31Nm |
Displacement force | 15N | Moving mass | 389g |
Product weight | 933g | Type of mounting | With internal thread |
Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
Manufacturer ID | 8204036 |
Specifications may be subject to change without notice
