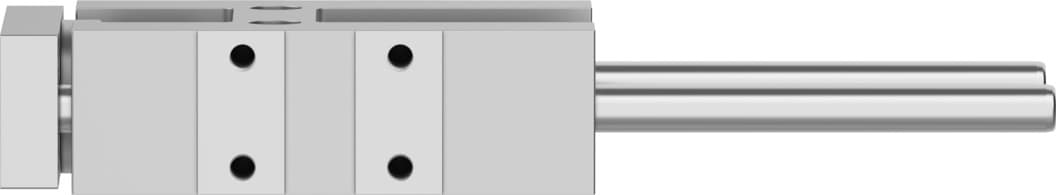

Festo FEN-25-80-KF Pneumatic Cylinder Guide Unit

Selling Points

1Precision Engineering: The Festo FEN-25-80-KF guide unit ensures precise movement and stability for standards-based cylinders, making it ideal for high-precision engineering applications.
2Recirculating Ball Bearing Guide: Equipped with a recirculating ball bearing guide, this unit provides smooth and reliable operation, reducing wear and tear on the cylinder.
3Versatile Mounting Options: The guide unit offers optional mounting positions, allowing for flexible installation in various settings, from industrial to laboratory environments.
4Robust Construction: Built with high-quality materials, including wrought aluminum alloy and high-alloy stainless steel, the FEN-25-80-KF ensures durability and longevity.
5Compliance with Industry Standards: Designed to meet ISO 6432 and VDMA 24562 standards, this guide unit ensures compatibility with a wide range of pneumatic cylinders, enhancing system reliability and performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	25	Stroke	80mm
Mounting position	Any	Guide	Recirculating ball bearing guide
Structural design	Guide	Explosion prevention and protection	Observe the information on the certificate
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-20°C 80°C
Max. force Fy	520N	Max. force Fy static	830N
Max. force Fz	520N	Max. force Fz static	830N
Max. torque Mx	15Nm	Max. static moment Mx	24Nm
Max. torque My	20Nm	Max. static moment My	31Nm
Max. torque Mz	20Nm	Max. static moment Mz	31Nm
Displacement force	15N	Moving mass	365g
Product weight	909g	Type of mounting	With internal thread
Note on materials	RoHS-compliant	Material of guide component	Tempered steel
Housing material	Wrought aluminum alloy, anodized	Material of yoke plate	Wrought aluminum alloy, anodized
Manufacturer ID	8204035

Specifications may be subject to change without notice
