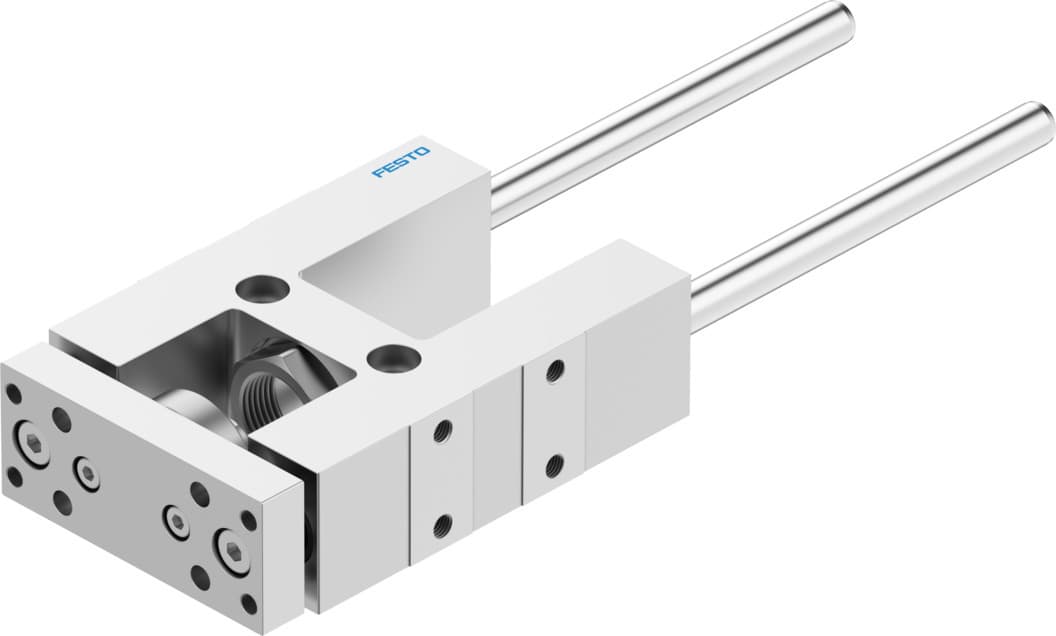

Fen-25-KF Pneumatic Linear Guide Unit by Festo - High Precision and Reliability

Selling Points

1The Fen-25-KF pneumatic linear guide unit is engineered to provide exceptional precision and reliability, making it ideal for demanding industrial applications.
2This guide unit is ATEX compliant, ensuring it meets the stringent safety standards required for use in hazardous environments.
3Available in various stroke lengths, the Fen-25-KF can be tailored to meet the specific needs of your project, from 50mm to 250mm.
4Built with high-quality wrought aluminium, this guide unit offers durability and resistance to corrosion, extending its lifespan.
5Designed for seamless integration into your existing pneumatic systems, the Fen-25-KF ensures smooth operation and minimal downtime.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	25	Stroke	2mm 250mm
Mounting position	Any	Guide	Recirculating ball bearing guide
Structural design	Guide	Explosion prevention and protection	Observe the information on the certificate
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-20°C 80°C
Max. force Fy	520N	Max. force Fy static	830N
Max. force Fz	520N	Max. force Fz static	830N
Max. torque Mx	15Nm	Max. static moment Mx	24Nm
Max. torque My	20Nm	Max. static moment My	31Nm
Max. torque Mz	20Nm	Max. static moment Mz	31Nm
Displacement force	15N	Additional moving mass per 10?mm stroke	12g
Basic weight with 0?mm stroke	813g	Additional weight per 10?mm stroke	12g
Center of gravity of moving mass with 0 mm stroke	42mm	Center of gravity of moving mass with 10 mm stroke	4.7mm
Type of mounting	With internal thread	Note on materials	RoHS-compliant
Material of guide component	Tempered steel	Housing material	Wrought aluminum alloy, anodized
Material of yoke plate	Wrought aluminum alloy, anodized	Manufacturer ID	33483

Specifications may be subject to change without notice
