Product Model
feng-32-125-gf
Selling Points

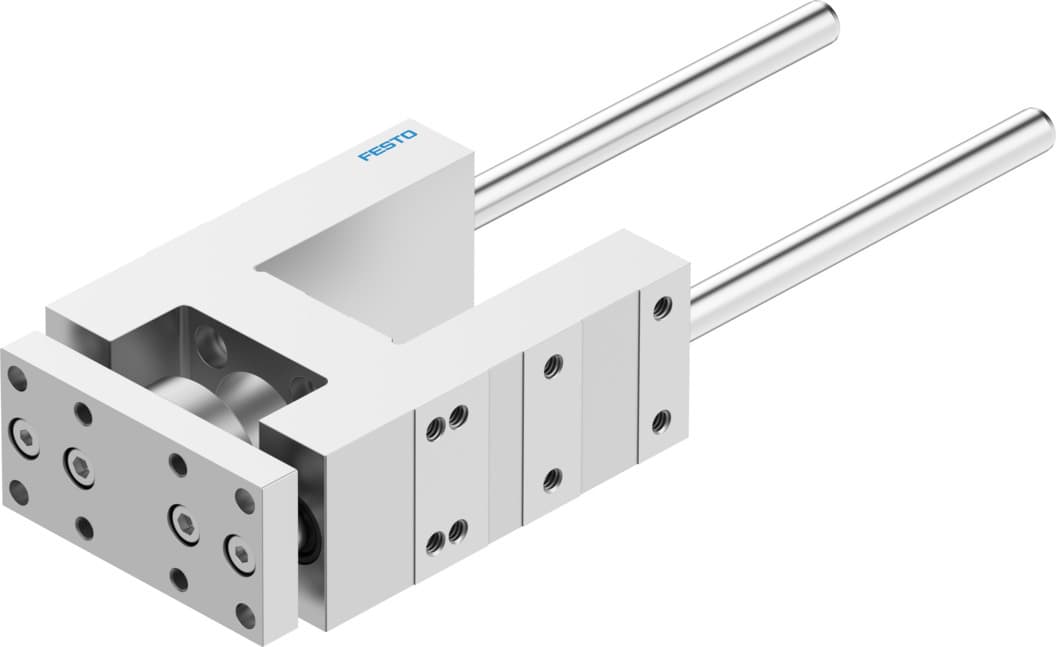

- 1The Festo FENG-32-125-GF guide unit offers high precision and versatility, making it suitable for a wide range of applications.
- 2This guide unit features adjustable stroke lengths from 10 to 500 mm, allowing for customization to meet specific application needs.
- 3Equipped with a plain-bearing guide, the FENG-32-125-GF ensures smooth operation and minimal friction, enhancing overall performance.
- 4Built with high-alloy steel, this guide unit provides robust construction and long service life, even under heavy loads.
- 5The FENG-32-125-GF conforms to ISO 6432 standards, ensuring compatibility with other Festo products and industry standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Stroke | 125mm |
Mounting position | Any | Guide | Sliding guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Displacement force | 30N | Moving mass | 690.5g |
Product weight | 1782.5g | Type of mounting | With internal thread |
Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
Manufacturer ID | 8204062 |
Specifications may be subject to change without notice
