Product Model
feng-32-160-kf
Selling Points

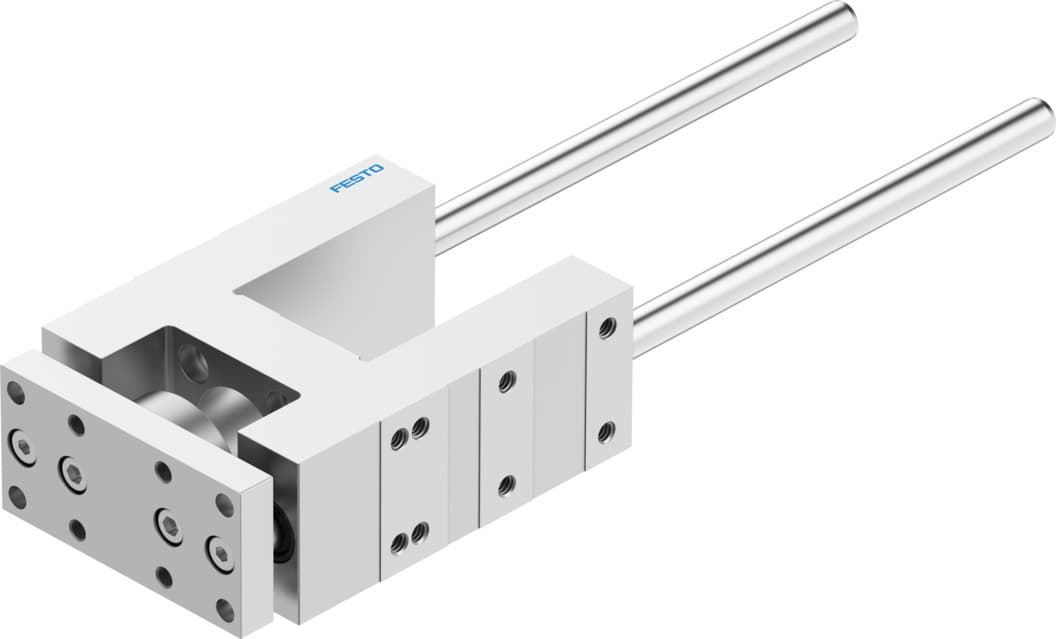

- 1The FENG-32-160-KF guide unit is equipped with a recirculating ball bearing guide, ensuring high accuracy and smooth operation.
- 2The guide unit can be mounted in any position, providing flexibility for various application setups.
- 3Constructed from tempered steel and anodized aluminum alloy, this guide unit offers robustness and durability.
- 4Designed with LABS (PWIS) conformity and VDMA24364-B2-L certification, it ensures safety in potentially explosive environments.
- 5Operates effectively within an ambient temperature range of -20 °C to 80 °C, making it suitable for diverse applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Stroke | 160mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 750N | Max. force Fy static | 1020N |
Max. force Fz | 750N | Max. force Fz static | 1020N |
Max. torque Mx | 28Nm | Max. static moment Mx | 38Nm |
Max. torque My | 34Nm | Max. static moment My | 46Nm |
Max. torque Mz | 34Nm | Max. static moment Mz | 46Nm |
Displacement force | 15N | Product weight | 1818g |
Type of mounting | With internal thread | Note on materials | RoHS-compliant |
Material of guide component | Tempered steel | Housing material | Wrought aluminum alloy, anodized |
Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 34495 |
Specifications may be subject to change without notice
