Product Model
feng-32-500-kf
Selling Points

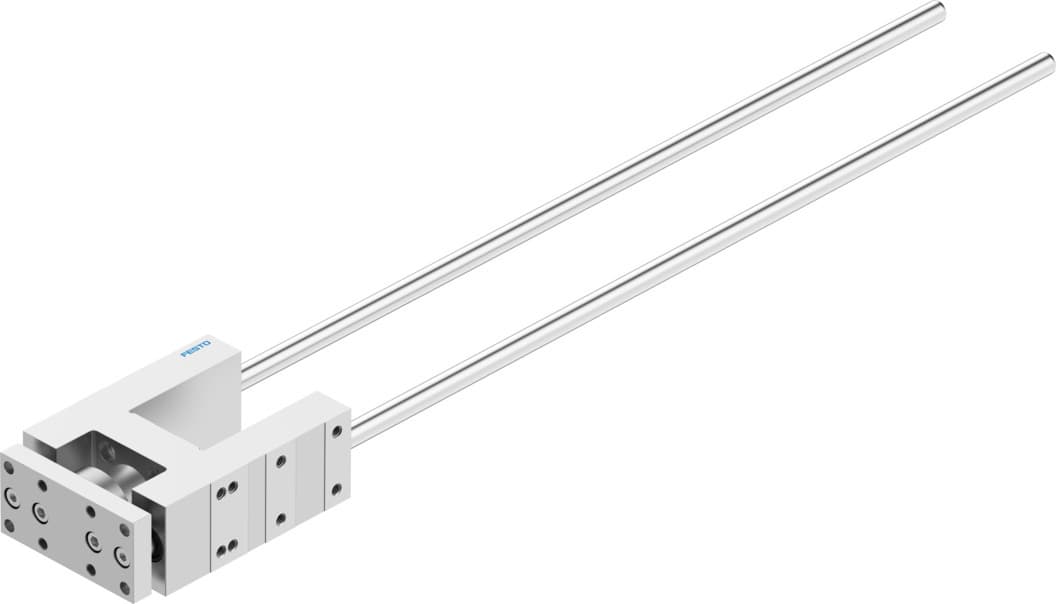

- 1The Festo FENG-32-500-KF is a high-performance recirculating ball bearing guide designed to provide precise and durable movement for pneumatic cylinders. Its 500mm stroke length makes it suitable for a wide range of applications.
- 2This guide unit features a robust construction with anodized wrought aluminum alloy housing and tempered steel guide components, ensuring long-lasting reliability.
- 3The FENG-32-500-KF operates within an ambient temperature range of -20°C to 80°C, making it versatile for various industrial environments.
- 4With a maximum force of 750 N and a maximum static force of 1020 N, this guide unit can handle significant loads while maintaining stability and precision.
- 5The FENG-32-500-KF is RoHS-compliant and offers a displacement force of 15 N, making it an excellent choice for applications requiring precise control and minimal friction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Stroke | 500mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 750N | Max. force Fy static | 1020N |
Max. force Fz | 750N | Max. force Fz static | 1020N |
Max. torque Mx | 28Nm | Max. static moment Mx | 38Nm |
Max. torque My | 34Nm | Max. static moment My | 46Nm |
Max. torque Mz | 34Nm | Max. static moment Mz | 46Nm |
Displacement force | 15N | Product weight | 2430g |
Type of mounting | With internal thread | Note on materials | RoHS-compliant |
Material of guide component | Tempered steel | Housing material | Wrought aluminum alloy, anodized |
Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 34498 |
Specifications may be subject to change without notice
