Product Model

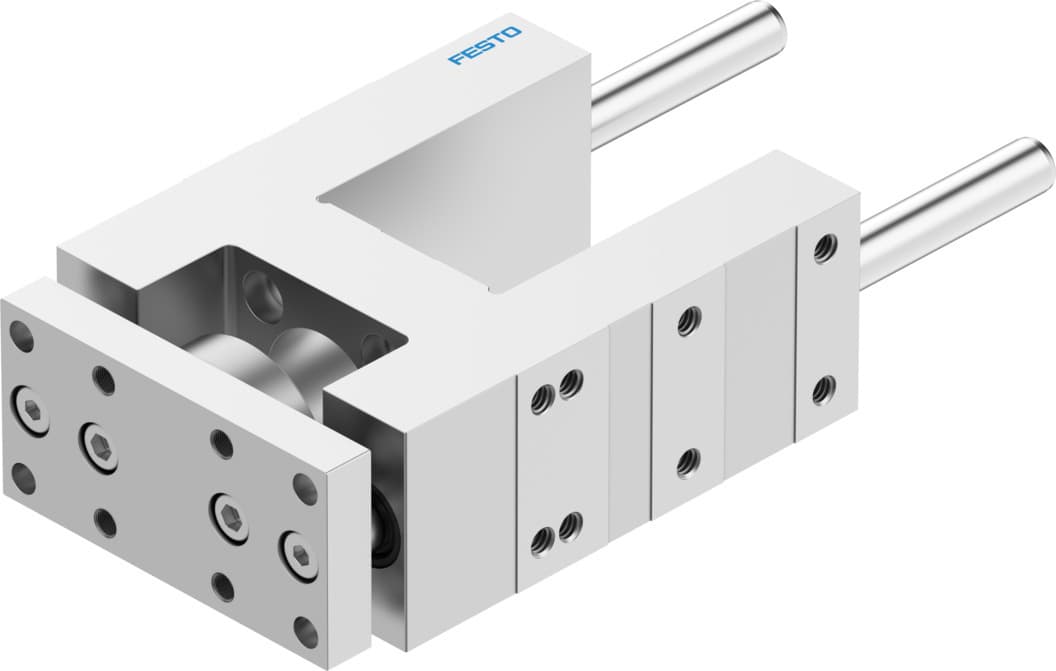

feng-32-50-kf
Selling Points
- 1The FENG-32-50-KF features a recirculating ball bearing guide, ensuring precise movement and protection against rotation.
- 2This guide unit offers optional mounting positions, allowing for flexible installation in various applications.
- 3With a maximum force of 750 N and static force of 1,020 N, it provides reliable performance in demanding environments.
- 4The FENG-32-50-KF operates within a wide ambient temperature range of -20°C to 80°C, making it suitable for diverse industrial settings.
- 5Designed with explosion protection in mind, this guide unit ensures safety in potentially hazardous environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Stroke | 50mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 750N | Max. force Fy static | 1020N |
Max. force Fz | 750N | Max. force Fz static | 1020N |
Max. torque Mx | 28Nm | Max. static moment Mx | 38Nm |
Max. torque My | 34Nm | Max. static moment My | 46Nm |
Max. torque Mz | 34Nm | Max. static moment Mz | 46Nm |
Displacement force | 15N | Product weight | 1620g |
Type of mounting | With internal thread | Note on materials | RoHS-compliant |
Material of guide component | Tempered steel | Housing material | Wrought aluminum alloy, anodized |
Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 34493 |
Specifications may be subject to change without notice
