Product Model
feng-32-80-gf
Selling Points

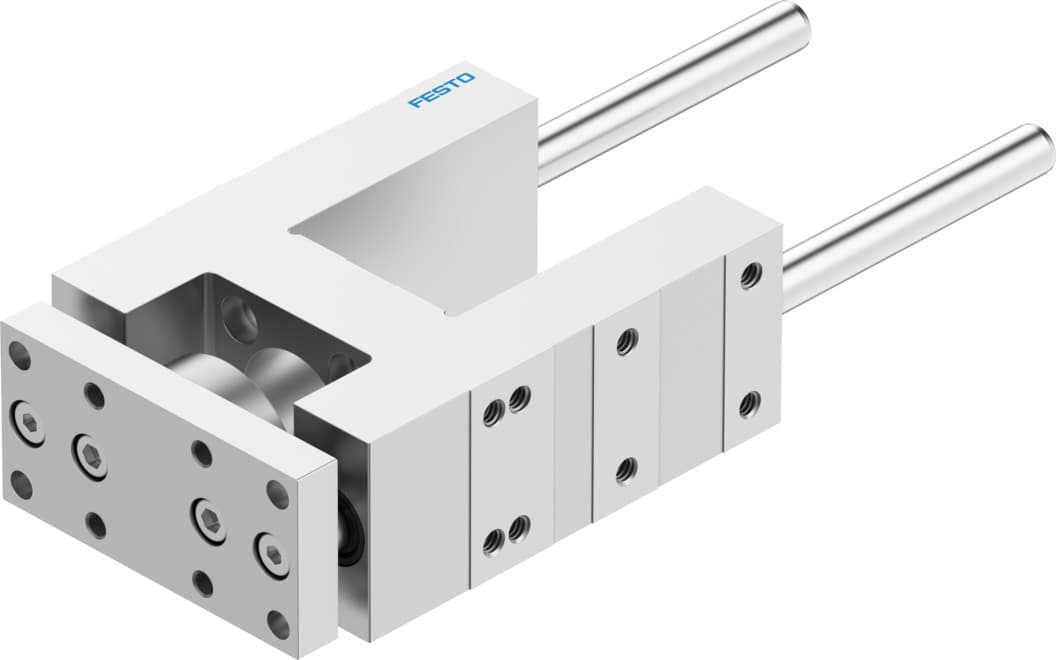

- 1The Festo FENG-32-80-GF guide unit offers a stroke length of 80 mm, providing precise control and movement in industrial settings.
- 2This guide unit features a plain-bearing guide, ensuring smooth and reliable operation with minimal friction.
- 3The FENG-32-80-GF is designed to operate within an ambient temperature range of -20 °C to 80 °C, making it suitable for a wide range of industrial environments.
- 4With a basic weight of 2480 grams and an additional weight of 31 grams per 10 mm stroke, this guide unit is robust and durable.
- 5The FENG-32-80-GF is RoHS-compliant and constructed from high-alloy steel for the guide component and anodised wrought aluminium alloy for the housing, ensuring high-quality materials and compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Stroke | 80mm |
Mounting position | Any | Guide | Sliding guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Displacement force | 30N | Moving mass | 614g |
Product weight | 1706g | Type of mounting | With internal thread |
Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
Manufacturer ID | 8204060 |
Specifications may be subject to change without notice
