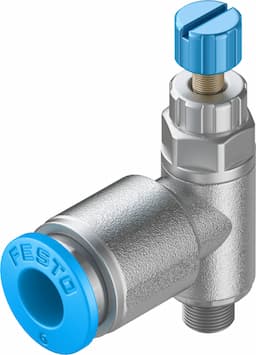

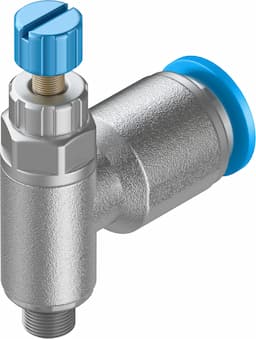

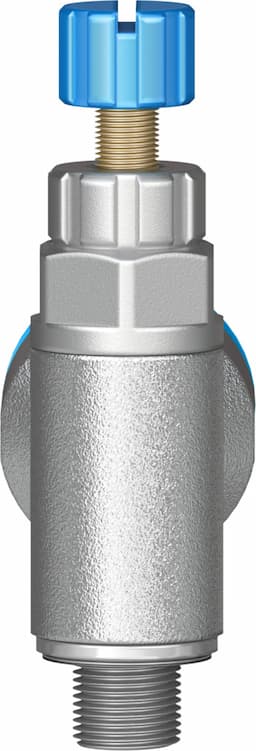

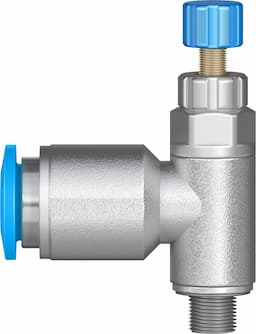

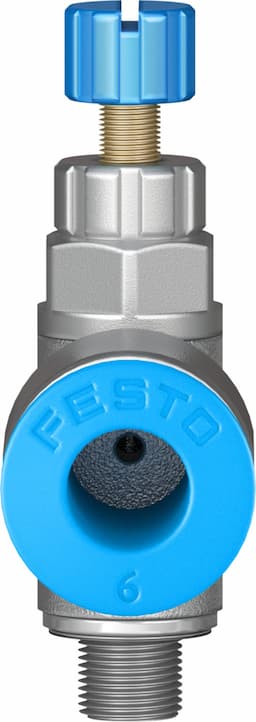

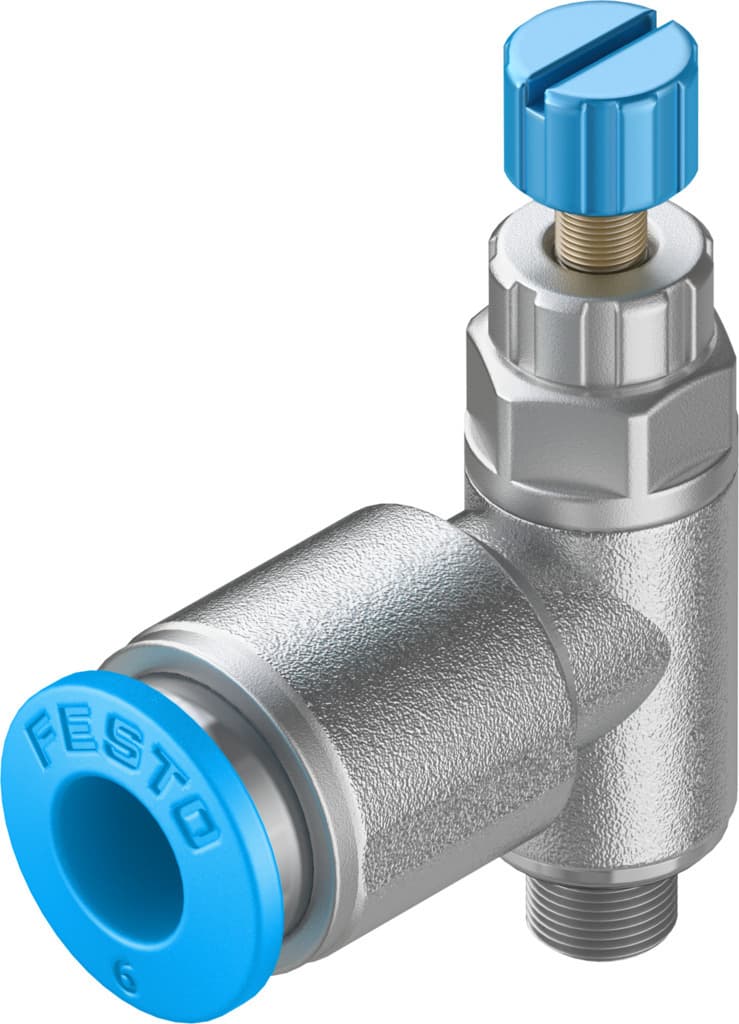

Product Model
grla-m5-qs-6-rs-d
Selling Points
- 1The GRLA-M5-QS-6-RS-D one-way flow control valve is specifically designed for efficient exhaust air control, ensuring optimal airflow management in various industrial applications.
- 2With a standard nominal flow rate of 115 l/min in the flow control direction, this valve provides high flow rates to meet the demands of modern industrial processes.
- 3Built to operate within a wide temperature range of -10°C to 60°C and under pressures from 0.2 to 10 bar, this valve ensures reliable performance in diverse environmental conditions.
- 4Featuring a threaded mounting type and knurled screw adjusting element, the GRLA-M5-QS-6-RS-D is easy to install and adjust, simplifying the integration process in your automation systems.
- 5Designed to operate with compressed air in accordance with ISO8573-1:2010, this valve meets the stringent standards required for industrial pneumatic systems, ensuring compatibility and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-6 |
Pneumatic connection 2 | M5 | Adjusting element | Knurled screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 115l/min |
Standard nominal flow rate in non-return direction | 70l/min 110l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Mounting position | Any | Symbol | 00991452 |
Operating pressure for entire temperature range | 0.2bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 185l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 145l/min 170l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Nominal tightening torque | 0.8Nm | Product weight | 14g |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 197578 |
Specifications may be subject to change without notice
