Product Model
grlz-1/8-qs-3-d
Selling Points

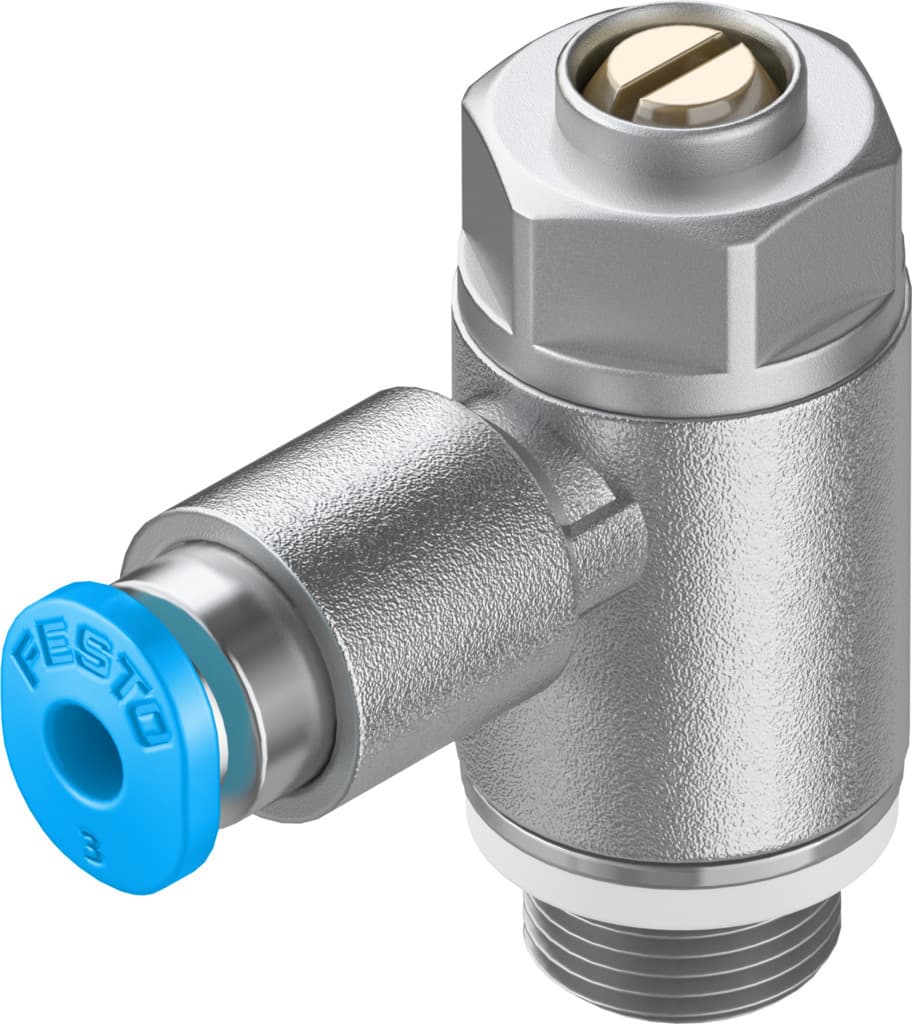

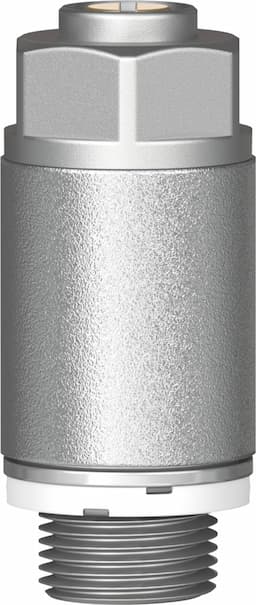

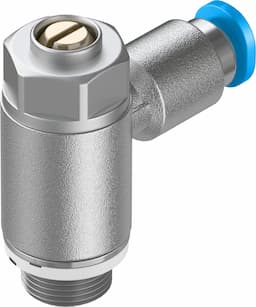

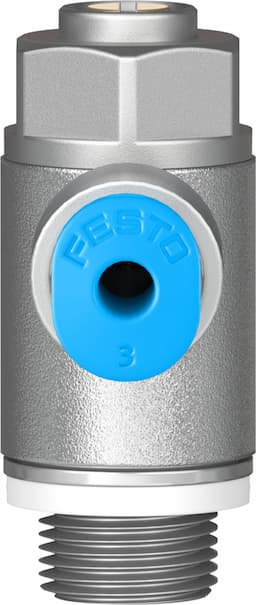

- 1The Festo GRLZ-1/8-QS-3-D one-way flow control valve offers precise control over pneumatic systems, ensuring reliable operation in various industrial applications.
- 2Compatible with QS-3 connectors, this valve provides flexible and reliable connections, making it suitable for a wide range of pneumatic systems.
- 3Constructed from high-quality materials, including brass and die-cast zinc, this valve ensures durability and resistance to corrosion.
- 4Designed for easy installation, the GRLZ-1/8-QS-3-D can be mounted in any position, making it a convenient choice for various automation setups.
- 5With a flow rate range of 130 to 200 liters per minute, this valve provides efficient performance in controlling pneumatic flows, enhancing overall system efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Supply air flow control non-return function | Pneumatic connection 1 | QS-3 |
Pneumatic connection 2 | G1/8 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 130l/min |
Standard nominal flow rate in non-return direction | 100l/min 130l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991453 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 200l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 180l/min 200l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 3Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 22g |
Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193156 |
Specifications may be subject to change without notice
