Product Model
grp-70-pk-3
Selling Points
- 1The GRP-70-PK-3 offers precise adjustment of flow rates with a standard nominal flow rate of 40.7 l/min in the flow control direction and 88 l/min in the non-return direction.

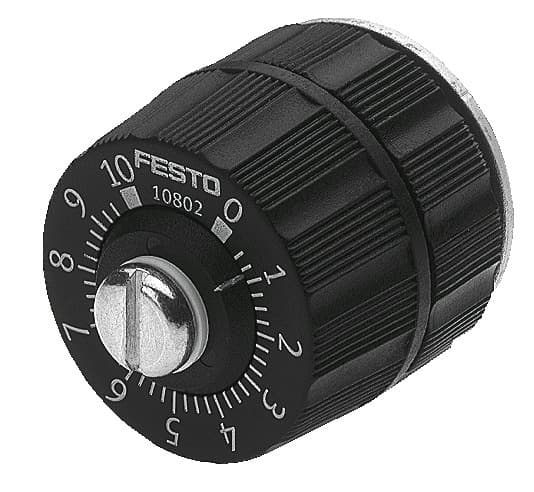

- 2This valve features manual actuation via a rotary knob with scale, providing easy and precise control over the flow.
- 3Equipped with a non-return function, the GRP-70-PK-3 ensures that fluid flow is controlled in one direction only, preventing backflow.
- 4The valve can be mounted on any surface, including front panel mounting, making it versatile for various pneumatic applications.
- 5The GRP-70-PK-3 operates with compressed air as per ISO 8573-1:2010 and is compatible with inert gases, ensuring compliance with industry standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control non-return function | Pneumatic connection 1 | PK-3 |
Pneumatic connection 2 | PK-3 | Actuation type | Manual |
Adjusting element | Rotary knob with scale | Type of mounting | Front panel mounting |
Standard nominal flow rate in flow control direction | 40.7l/min | Standard nominal flow rate in non-return direction | 88l/min |
Operating pressure | 0bar 8bar | Ambient temperature | -10°C 50°C |
Housing material | PA-reinforced | Mounting position | Any |
Symbol | 00991453 | Operating pressure from 2 to 1 | 0bar 8bar |
Standard nominal flow rate in flow control direction from 1bar to 0 bar | 19l/min | Standard nominal flow rate in non-return direction from 1 bar to 0 bar | 20l/min 60l/min |
Standard flow rate in flow control direction 6 -> 0 bar | 60l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 127l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [5:4:3] Inert gas | Information on operating and pilot media | Operation with oil lubrication not possible |
LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | -10°C 50°C |
Product weight | 48g | Note on materials | RoHS-compliant |
Seals material | NBR PVC | Retaining bracket material | Wrought aluminum alloy |
PK connections material | Wrought aluminum alloy Brass | Material of screws | Steel |
Manufacturer ID | 10802 |
Specifications may be subject to change without notice
