Product Model
hgpd-25-a
Selling Points

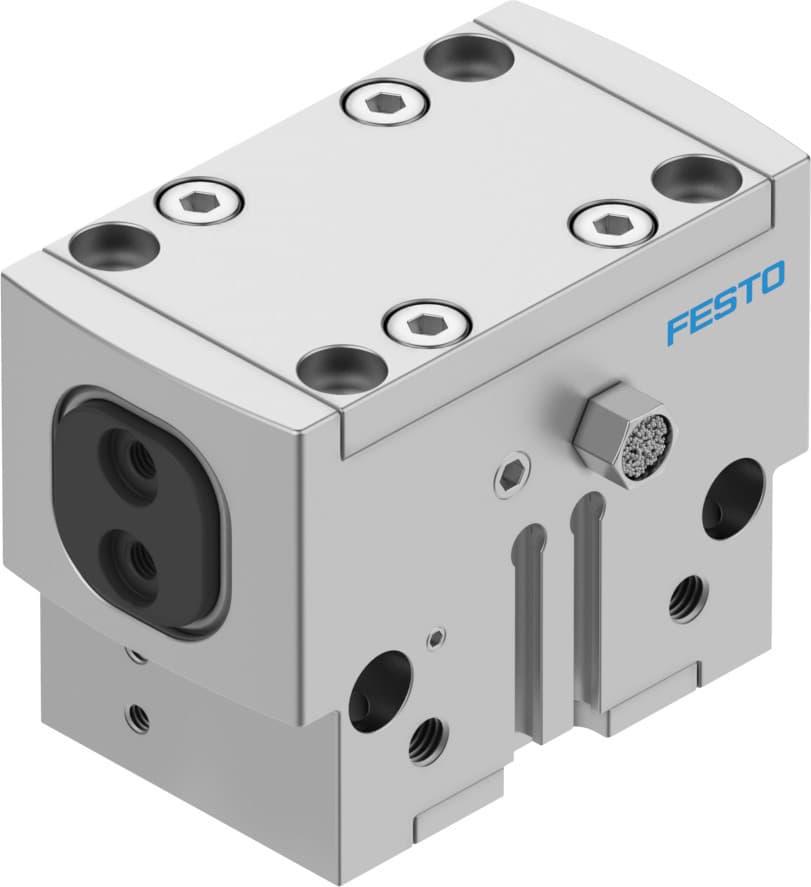

- 1The Festo HGPD-25-A-G1 parallel gripper offers a maximum interchangeability of ≤0.2 mm and a repeatability of ≤0.04 mm, ensuring precise and reliable operations.
- 2This gripper allows for arbitrary installation positions, providing flexibility in various industrial setups.
- 3Built with hardened steel gripper jaws and anodized aluminum housing, the HGPD-25-A-G1 is designed for durability and resistance to corrosion.
- 4With a maximum operating frequency of 3 Hz and operating pressures ranging from 4 to 8 bar, this gripper ensures efficient and controlled movement cycles.
- 5Equipped with proximity switch position detection, the HGPD-25-A-G1 offers precise control over its operations, enhancing overall system accuracy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Stroke per gripper jaw | 6mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
Max. gripper jaw backlash Sz | 0.02mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.04mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Inclined plane Positively driven motion sequence |
Position sensing | For proximity sensor | Symbol | 00991894 |
Operating pressure | 3bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
Max. operating frequency of pneumatic gripper | 3Hz | Min. opening time at 6 bar | 29ms |
Min. closing time at 6 bar | 35ms | Max. mass per external gripper finger | 138g |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Degree of protection | IP65 | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, opening | 144N | Gripping force per gripper jaw at 6 bar, closing | 133N |
Mass moment of inertia | 1.32kgcm2 | Maximum force on gripper jaw Fz, static | 500N |
Maximum torque on gripper jaw, Mx static | 30Nm | Maximum torque on gripper jaw, My static | 25Nm |
Maximum torque on gripper jaw, Mz static | 15Nm | Relubrication interval for guidance elements | 5MioCyc |
Product weight | 327g | Type of mounting | Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve With through-hole and dowel pin With internal thread and dowel pin |
Sealing air pneumatic connection | M5 | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover cap material | High-alloy stainless steel |
Housing material | Aluminum, anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 1132942 |
