Product Model

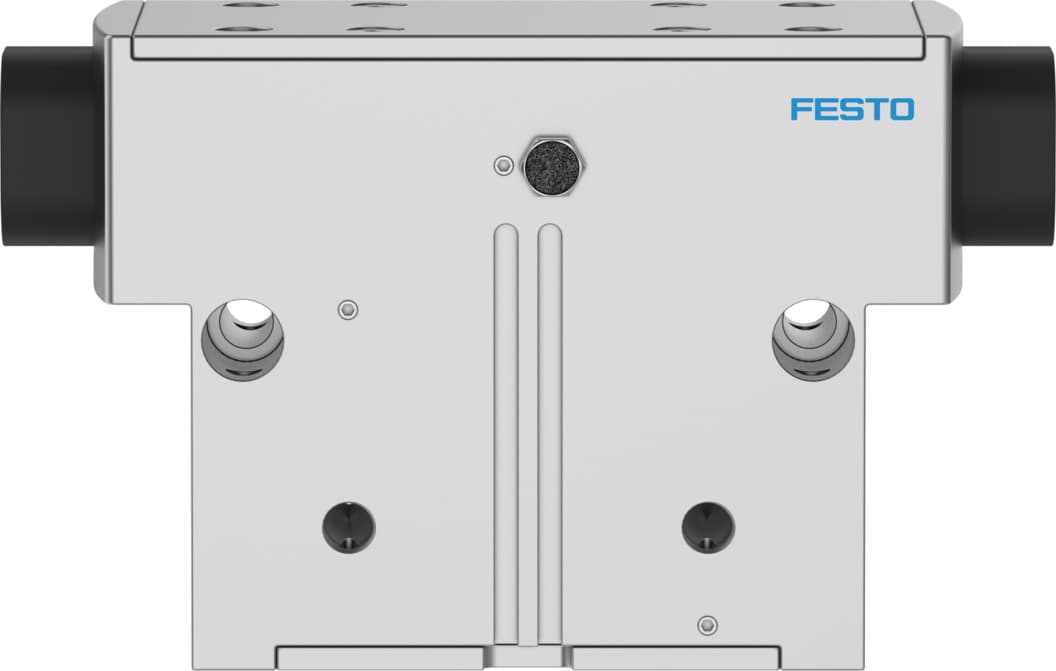

hgpd-80-a-g1
Selling Points
- 1The HGPD-80-A-G1 pneumatic gripper offers a stroke of 20 mm and a maximum interchangeability of ≤0.2 mm, ensuring precise handling in various industrial applications.
- 2This gripper operates in a double-acting mode, allowing for efficient and reliable operation in both opening and closing positions.
- 3Equipped with two gripper jaws in parallel, the HGPD-80-A-G1 provides robust gripping force and stability, making it suitable for diverse handling tasks.
- 4The gripper is designed for position detection via proximity sensors, enhancing its accuracy and reliability in automated systems.
- 5The HGPD-80-A-G1 operates effectively within a wide pressure range of 4 to 8 bar, ensuring flexibility in different industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 80 | Stroke per gripper jaw | 20mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
Max. gripper jaw backlash Sz | 0.02mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | On opening | Structural design | Inclined plane Positively driven motion sequence |
Position sensing | For proximity sensor | Symbol | 00995947 |
Operating pressure | 4bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
Max. operating frequency of pneumatic gripper | 2Hz | Min. opening time at 6 bar | 235ms |
Min. closing time at 6 bar | 353ms | Max. mass per external gripper finger | 2170g |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Degree of protection | IP65 | Ambient temperature | 5°C 60°C |
Mass moment of inertia | 319.95kgcm2 | Maximum torque on gripper jaw, Mx static | 170Nm |
Maximum torque on gripper jaw, My static | 130Nm | Maximum torque on gripper jaw, Mz static | 110Nm |
Relubrication interval for guidance elements | 5MioCyc | Product weight | 7484g |
Type of mounting | Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve With through-hole and dowel pin With internal thread and dowel pin | Sealing air pneumatic connection | M5 |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover cap material | High-alloy stainless steel | Housing material | Aluminum, anodized |
Gripper jaw material | Hardened steel | Manufacturer ID | 1132958 |
Specifications may be subject to change without notice
