Product Model

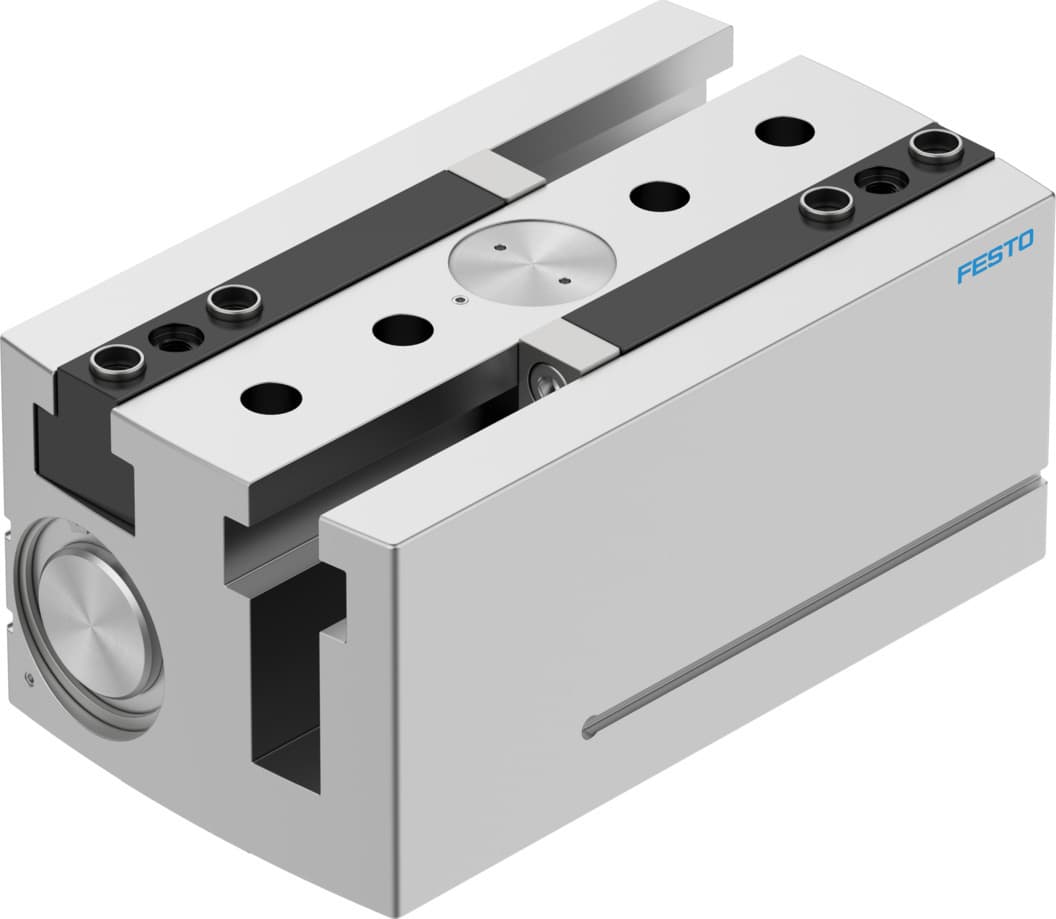

hgpl-63-100-a-b
Selling Points
- 1The HGPL-63-100-A-B offers a stroke of 100 mm and a maximum replacement accuracy of 0.2 mm, ensuring precise handling in various industrial applications.
- 2This gripper operates in a double-acting mode, allowing for both opening and closing actions with minimal time, making it ideal for fast-paced manufacturing processes.
- 3With a maximum gripping force of 2466 N (opening) and 2742 N (closing) at 6 bar, the HGPL-63-100-A-B provides robust gripping capabilities, suitable for heavy-duty tasks.
- 4The gripper features a twin piston design with a T-shape rack and pinion, facilitating easy integration into existing automation systems and ensuring smooth operation.
- 5Available for mounting in any position, the HGPL-63-100-A-B offers flexibility in installation, making it suitable for various industrial settings and configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 63 | Stroke per gripper jaw | 100mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.2deg |
Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mounting position | Any |
Mode of operation | Double-acting | Gripper function | Parallel |
Gripping force backup | Without | Structural design | Twin piston Guide Piston gate valve T-shape Gear rack/pinion |
Position sensing | For proximity sensor | Symbol | 00991894 |
Operating pressure | 3bar 8bar | Max. operating frequency of pneumatic gripper | 1Hz |
Min. opening time at 6 bar | 650ms | Min. closing time at 6 bar | 600ms |
Max. mass per external gripper finger | 940g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 5°C 60°C |
Gripping force per gripper jaw at 6 bar, opening | 1233N | Gripping force per gripper jaw at 6 bar, closing | 1371N |
Mass moment of inertia | 1018.17kgcm2 | Maximum force on gripper jaw Fz, static | 9000N |
Maximum torque on gripper jaw, Mx static | 300Nm | Maximum torque on gripper jaw, My static | 200Nm |
Maximum torque on gripper jaw, Mz static | 250Nm | Relubrication interval for guidance elements | 5MioCyc |
Product weight | 13800g | Type of mounting | With internal thread and centering sleeve Via through-hole and centering sleeve |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
Manufacturer ID | 3361493 |
Specifications may be subject to change without notice
