Product Model

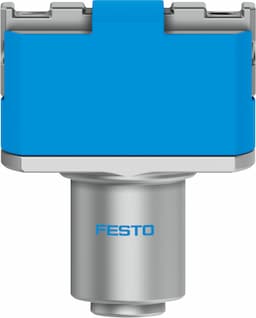

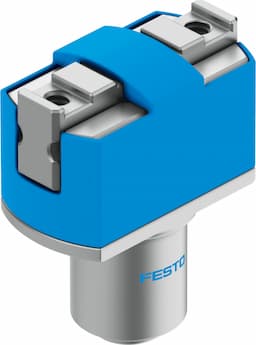

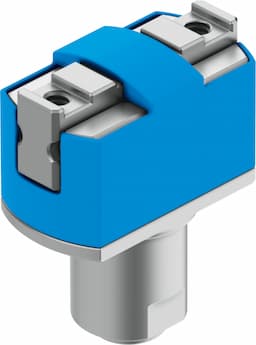

hgpm-08-ez-g8
Selling Points
- 1The HGPM-08-EZ-G8 offers a max replacement accuracy of 0.2 mm and a repetition accuracy of ≤0.05 mm, ensuring precise handling in various applications.
- 2With a stroke per gripper jaw of 2 mm and a product weight of 11 g, this gripper is ideal for compact automation systems where space is limited.
- 3Made from high-alloy steel for the gripper jaws and anodized wrought aluminum alloy for the housing, this gripper provides robust performance and durability.
- 4The HGPM-08-EZ-G8 operates at pressures between 4 and 8 bar, allowing it to be integrated into various pneumatic systems with ease.
- 5Featuring a clamped mounting type and M3 pneumatic connection, this gripper is simple to integrate into your existing automation setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 8 | Stroke per gripper jaw | 2mm |
Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.5deg |
Max. gripper jaw backlash Sz | 0.03mm | Rotational symmetry | 0.15mm |
Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
Actuator system | Pneumatic | Mode of operation | Single-acting Closed |
Gripper function | Parallel | Gripping force backup | Without |
Structural design | Inclined plane | Position sensing | None |
Symbol | 00991898 | Operating pressure | 4bar 8bar |
Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 1.9ms |
Min. closing time at 6 bar | 4.1ms | Max. mass per external gripper finger | 5g |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 5°C 60°C | Gripping force per gripper jaw at 6 bar, closing | 16N |
Gripping force per gripper jaw at 6 bar, opening | 8N | Mass moment of inertia | 0.00573kgcm2 |
Maximum force on gripper jaw Fz, static | 10N | Maximum torque on gripper jaw, Mx static | 0.1Nm |
Maximum torque on gripper jaw, My static | 0.1Nm | Maximum torque on gripper jaw, Mz static | 0.1Nm |
Product weight | 11g | Type of mounting | Clamped |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover cap material | POM | Housing material | Wrought aluminum alloy, anodized |
Gripper jaw material | High-alloy steel | Manufacturer ID | 197563 |
Specifications may be subject to change without notice
