Product Model

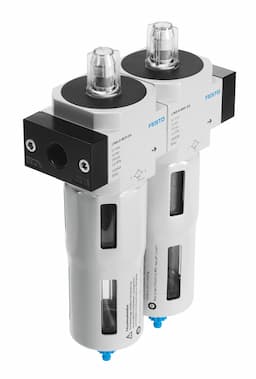

lfmba-3/8-d-mini-da-a
Selling Points
- 1The Festo LFMBA-3/8-D-MINI-DA-A features a filtration grade of 0.01 µm, ensuring 99.9999% filter efficiency for clean compressed air.
- 2This fine filter combination is designed in a mini size, making it perfect for space-constrained applications without compromising on performance.
- 3Equipped with a fully-automatic condensate drain, this unit ensures continuous operation and minimizes downtime due to condensate buildup.
- 4The LFMBA-3/8-D-MINI-DA-A includes a differential pressure indicator, providing real-time monitoring of filter performance and pressure differences.
- 5The filter can be assembled in a vertical position with a tolerance of +/- 5°, offering flexibility in installation and integration with various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Series | D |
Mounting position | Vertical +/- 5° | Grade of filtration | 0.01μm |
Filter efficiency | 99.9999% | Condensate drain | Fully automatic |
Structural design | Fiber filter | Max. condensate volume | 22ml |
Bowl guard | Metal bowl guard | Symbol | 00991530 |
Operating pressure | 1.5bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2] Inert gas |
Temperature of medium | 1.5°C 60°C | Residual oil content | 0.01mg/m3 |
Ambient temperature | -10°C 60°C | Product weight | 651g |
Type of mounting | Line installation With accessories | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Note on materials | RoHS-compliant |
Compressed air filter material | Borosilicate fiber | Housing material | Die-cast zinc |
Material of bowl | PC | Manufacturer ID | 532875 |
Specifications may be subject to change without notice
