Product Model
lfr-3/4-d-maxi-kb
Selling Points
- 1The Festo LFR-3/4-D-MAXI-KB is designed for compressed air and inert gases, offering a 40µm filtration level to ensure high air purity and reliability in various industrial applications.
- 2This air preparation unit features a standard nominal flow rate of 8400 l/min, making it suitable for demanding pneumatic systems that require consistent airflow.
- 3The LFR-3/4-D-MAXI-KB is built with durable materials, including a die-cast zinc housing and a PC material bowl, ensuring long-lasting performance and resistance to corrosion.
- 4With a maximum operating pressure of 16 BAR and an ambient temperature range of -10°C to 60°C, this unit can handle a wide range of operating conditions, making it versatile for various industrial settings.
- 5The product is RoHS-compliant and meets VDMA24364-B1/B2-L standards, ensuring it is environmentally friendly and compliant with industry regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Maxi | Series | D |
Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |

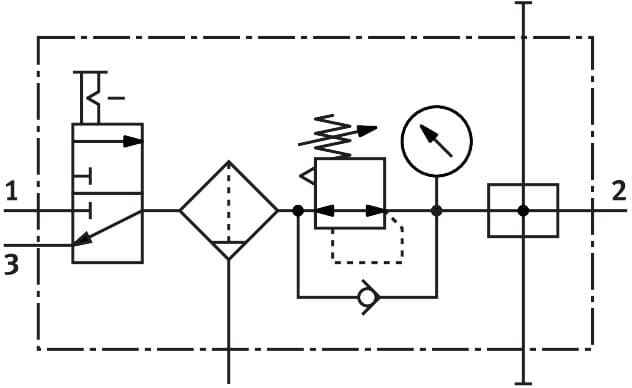

Structural design | Branching module Shut off valve Filter regulator with pressure gauge | Max. condensate volume | 80ml |
Bowl guard | Metal bowl guard | Symbol | 00991771 |
Pressure gauge | with pressure gauge | Operating pressure | 14.5psi 232psi |
Pressure regulation range MPa | 0.05MPa 1.2MPa | Pressure regulation range | 0.5bar 12bar |
Pressure regulation range psi | 7.25psi 174psi | Max. pressure hysteresis | 2.9psi |
Standard nominal flow rate | 8400l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 3300g |
Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G3/4 |
Pneumatic connection 2 | G3/4 | Housing material | Die-cast zinc |
Material of bowl | PC | Manufacturer ID | 185729 |
Specifications may be subject to change without notice
