Product Model

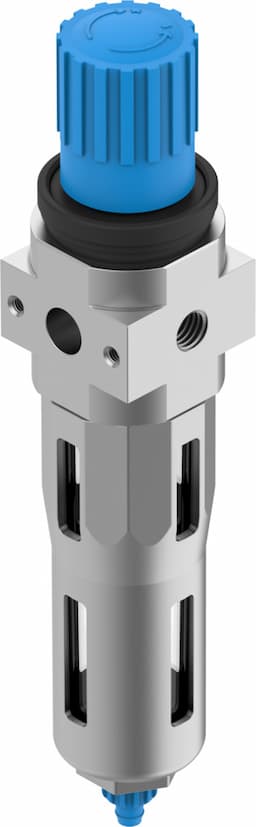

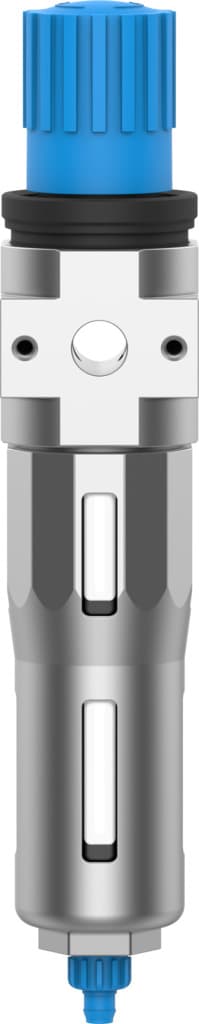

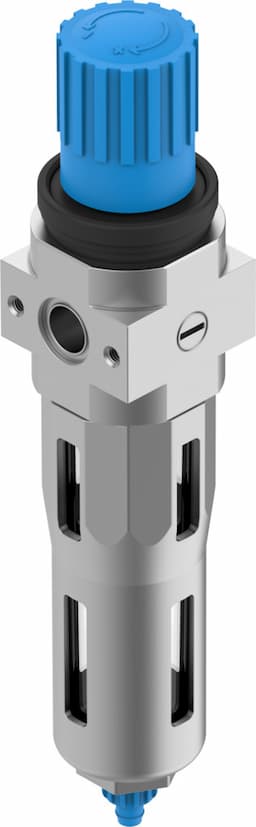

lfr-d-mini
Selling Points
- 1The LFR-D-MINI features a high-grade filtration system with a 40 μm filter, ensuring clean and reliable compressed air for your industrial processes.
- 2With a mini series design, this filter regulator is space-saving and ideal for applications where space is limited, making it perfect for modern automation systems.
- 3The LFR-D-MINI can be mounted vertically with a ±5° angle adjustment, providing flexibility in installation and integration with various pneumatic systems.
- 4Equipped with a fully automatic condensate drain, this filter regulator minimizes downtime and maintenance, ensuring continuous operation.
- 5Built with die-cast zinc housing and a metal bowl guard, the LFR-D-MINI offers robust corrosion resistance (CRC 2) and durability in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Series | D |
Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Filter regulator without pressure gauge | Max. condensate volume | 21.991ml |
Bowl guard | Metal bowl guard | Symbol | 00991586 |
Pressure gauge | G1/8 prepared | Operating pressure | 0.951bar 16.547bar |
Pressure regulation range | 0.476bar 12.411bar | Max. pressure hysteresis | 0.207bar |
Standard nominal flow rate | 3336.86l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 406.823g |
Type of mounting | Optionally: Line installation With accessories | Note on materials | RoHS-compliant |
Housing material | Die-cast zinc | Material of bowl | PC |
Manufacturer ID | 546432 |
Specifications may be subject to change without notice
