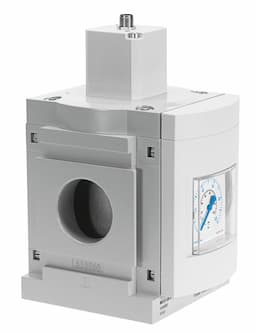

Product Model
ms12-lr-g-pe6
Selling Points
- 1High flow rate: 12,000 to 21,000 l/min for efficient pneumatic control.
- 2Precise pressure control: Operating pressure range of 0.115 to 0.8 MPa with low hysteresis.
- 3Robust construction: Made from die-cast aluminum housing with NBR seals for durability.
- 4Versatile mounting: Optional mounting position for flexibility in installation.
- 5Reliable operation: Compliant with ISO 8573-1:2010 for compressed air quality and IP65 protection class.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation

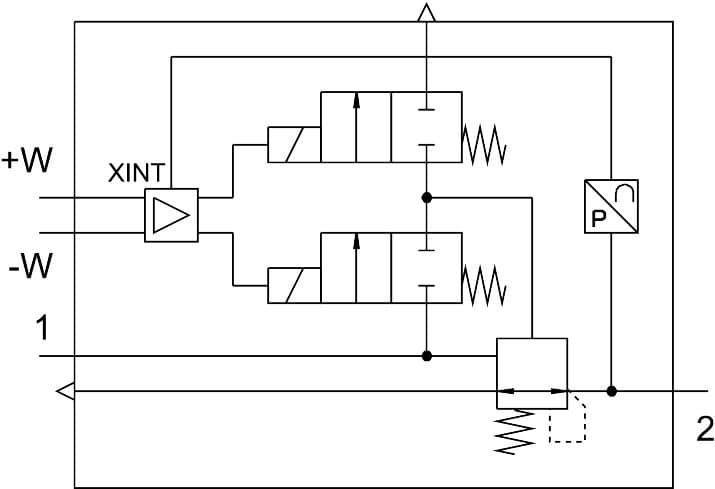

| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Series | MS |
Mounting position | Any | Structural design | Pilot-controlled diaphragm regulator |
Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function | Symbol | 00991856 |
Pressure gauge | with pressure gauge | Operating pressure | 1.15bar 8bar |
Pressure regulation range | 0.15bar 6bar | Max. pressure hysteresis | 0.58psi |
Flow rate of secondary venting | 600l/min | Standard nominal flow rate | 12000l/min 21000l/min |
DC operating voltage range | 21.6V 26.4V | Max. electrical power consumption | 3.6W |
Max. current consumption | 0.15A | Nominal operating voltage DC | 24V |
Residual ripple | 10 % | Analog input signal range | 0 - 10 V |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | Temperature of medium | 10°C 50°C |
Degree of protection | IP65 | Ambient temperature | 10°C 50°C |
Product weight | 4000g | Type of mounting | Optionally: Line installation With mounting bracket |
Pneumatic connection 1 | Sub-base | Pneumatic connection 2 | Sub-base |
Covering material | PA | Note on materials | RoHS-compliant |
Lower cover material | Wrought aluminum alloy | Seals material | NBR |
Material of spring | Spring steel | Housing material | Die-cast aluminum |
Diaphragm material | NBR | Valve tappet material | Wrought aluminum alloy NBR High-alloy stainless steel |
Manufacturer ID | 564888 |
Specifications may be subject to change without notice
