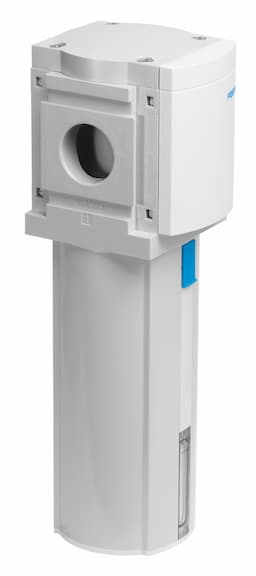

Festo MS12-LWS-G-U-V Water Separator - Efficient Condensate Drain

Selling Points

1Fully Automatic Condensate Drain: Automatically drains condensate, ensuring continuous system operation.
2High Separation Efficiency: Achieves a condensate separation degree of 0.99%, minimizing water content in compressed air.
3Compact Design: Suitable for vertical installation with a ±5° angle tolerance, making it versatile for various applications.
4Robust Construction: Built with PA-reinforced material and die-cast aluminum housing for durability and corrosion resistance.
5High Flow Rates: Handles maximum standard flow rates of 40,000 l/min and nominal flow rates of 25,000 l/min.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	12	Series	MS
Mounting position	Vertical +/- 5°	Condensate drain	Fully automatic
Structural design	Centrifugal separator	Max. condensate volume	400ml
Bowl guard	Integrated as metal bowl guard	Degree of condensate separation	99%
Symbol	00992244	Operating pressure	2bar 12bar
Max. standard flow rate	40000l/min	Standard nominal flow rate	25000l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Storage temperature	5°C 60°C
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [7:7:4]	Temperature of medium	5°C 60°C
Ambient temperature	5°C 60°C	Product weight	6.3g
Type of mounting	Optionally: Line installation With mounting bracket With accessories	Covering material	PA-reinforced
Material of spin disc	POM	Note on materials	RoHS-compliant
Material of sub-base	Die-cast aluminum	Material of mounting bracket	Die-cast aluminum
Housing material	Die-cast aluminum	Module connector material	Die-cast aluminum
Material of bowl	Wrought aluminum alloy	Shell sealing material	NBR
Inspection window material	PA	Separating disc material	POM
Manufacturer ID	8005550

Specifications may be subject to change without notice
