Product Model

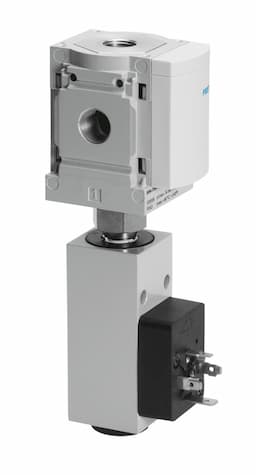

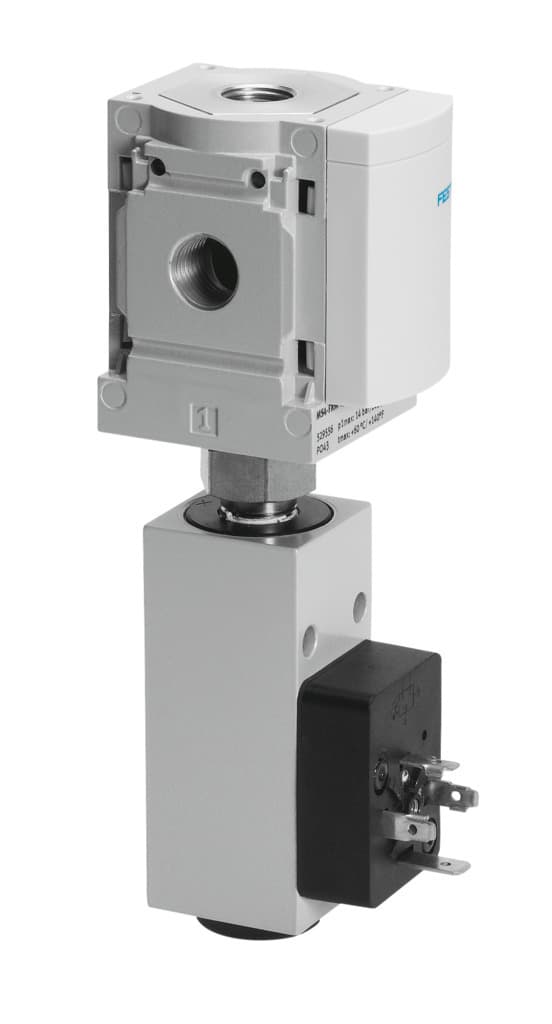

ms4n-frm-1/4-y
Selling Points
- 1The Festo MS4N-FRM-1/4-Y is designed to distribute compressed air efficiently, ensuring consistent pressure and flow rates in various industrial applications.
- 2Equipped with four 1/4 NPT connections, this manifold provides flexible and reliable pneumatic connections for easy integration into your system.
- 3Operating at pressures up to 12 bar, the MS4N-FRM-1/4-Y is suitable for demanding industrial environments where high pressure is required.
- 4With a standard nominal flow rate of 4600 L/min, this manifold ensures that your system receives the necessary airflow for optimal performance.
- 5Backed by a 2-year warranty, the Festo MS4N-FRM-1/4-Y offers peace of mind and reliability in your pneumatic system setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Structural design | Branching module |
Symbol | 00995602 | Operating pressure | 0bar 12bar |
Standard nominal flow rate in main flow direction 1 -> 2 | 4600l/min | Standard nominal flow rate outlet at top | 1500l/min |
Standard nominal flow rate outlet down | 1500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 405g |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 4 | 1/4 NPT |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Manufacturer ID | 531953 |
Specifications may be subject to change without notice
