Product Model
ms6-em1-1/2-f1a
Selling Points

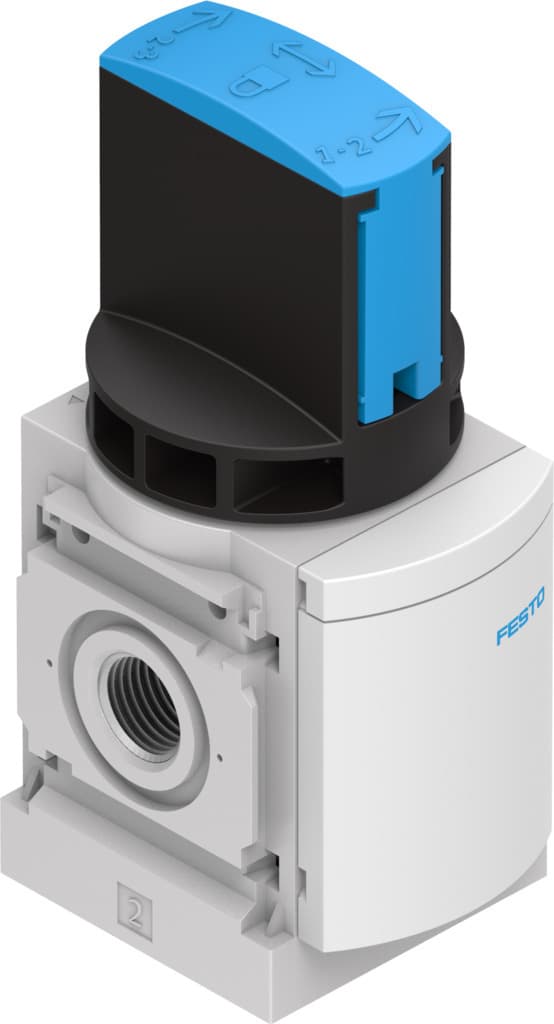

- 1The Festo MS6-EM1-1/2-F1A is a manually operated on/off valve designed for precise control in pneumatic systems, ensuring maximum machine availability and reliability.
- 2This valve features a robust construction with a G1/2 pneumatic connection, making it easy to integrate into various industrial applications.
- 3The MS6-EM1-1/2-F1A is part of the MS series, known for its high flow rates and efficient pressure regulation, making it ideal for demanding pneumatic operations.
- 4With a temperature range of -10°C to +60°C and a pressure regulation range of 0.5 to 12 bar, this valve can handle a variety of operating conditions, ensuring consistent performance.
- 5The valve includes a manual condensate drain option, allowing for easy maintenance and minimizing downtime, which is crucial for maintaining system efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Rotary gate valve | Actuation type | Manual |
Exhaust air function | Without flow control option | Type of control | Direct |
Application note | Foreign particles can remain stuck to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, clean it after installation and operate it with ducted exhaust air. | Symbol | 00991670 |
Valve function | 3/2, bistable | Operating pressure | 0bar 18bar |
C value | 30.8l/sbar | b-value | 0.57 |
Standard nominal flow rate | 8700l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 580g |
Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
Pneumatic connection 3 | G1/2 | Seals material | TPE-U(PU) |
Housing material | Die-cast aluminum | Manufacturer ID | 8183562 |
Specifications may be subject to change without notice
