Product Model

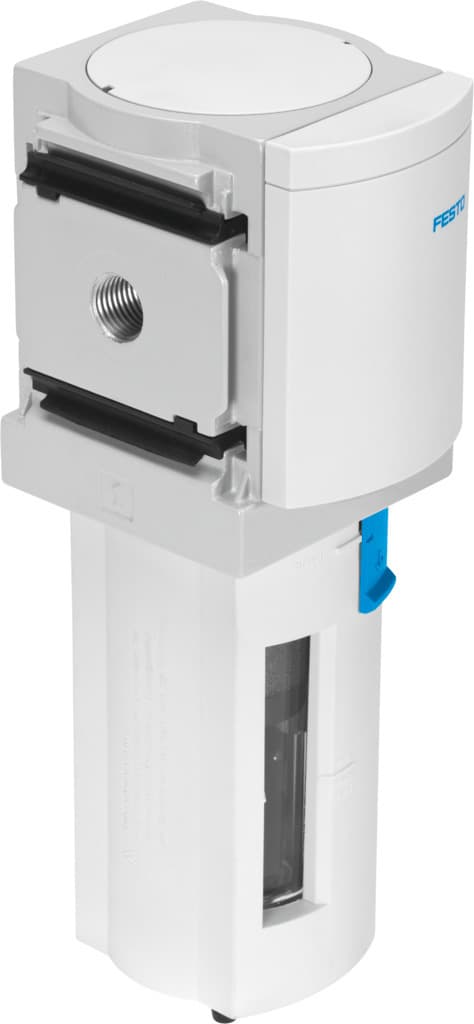

ms6-lfm-3/8-arv
Selling Points
- 1The Festo MS6-LFM-3/8-ARV features a filter fineness of 0.01µm, ensuring 99.9999% filtration efficiency for clean compressed air.
- 2This filter includes a fully automatic condensate drain, eliminating the need for manual intervention and ensuring continuous operation.
- 3With a grid dimension of 62 mm, the MS6-LFM-3/8-ARV is designed for efficient use in various pneumatic systems, offering a compact yet effective solution.
- 4The filter supports multiple pneumatic connections, including G1/4, G3/8, and G1/2 threads, making it adaptable to various system configurations.
- 5Designed for use in demanding applications, the MS6-LFM-3/8-ARV ensures reliable performance with its robust construction and high-efficiency filtration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 6 |
Structural design | Fiber filter | Grade of filtration | 0.01μm |
Condensate drain | Fully automatic Manual, non-detenting | Symbol | 00991520 |
Operating pressure | 2bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] Inert gas |
Air quality class at the output | Compressed air as per ISO?8573-1:2010 [3:4:2] | Max. standard flow rate for air quality class | 900l/min |
Min. standard flow rate for air quality class | 135l/min | Filter efficiency | 99.9999% |
Max. condensate volume | 38ml | Bowl guard | Plastic bowl guard |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Storage temperature | -10°C 60°C |
Filter efficiency, fine particles | 99.995% | MPPS | 0.05μm |
MPPS filter efficiency | 99.95% | Residual oil content | 0.01mg/m3 |
Filter efficiency, oil aerosol | 99% | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Vertical +/- 5° | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Housing material | Die-cast aluminum |
Compressed air filter material | Borosilicate fiber | Material of bowl | PC |
Seals material | NBR | Note on materials | RoHS-compliant |
Product weight | 600g | Manufacturer ID | 530518 |
Specifications may be subject to change without notice
