Product Model

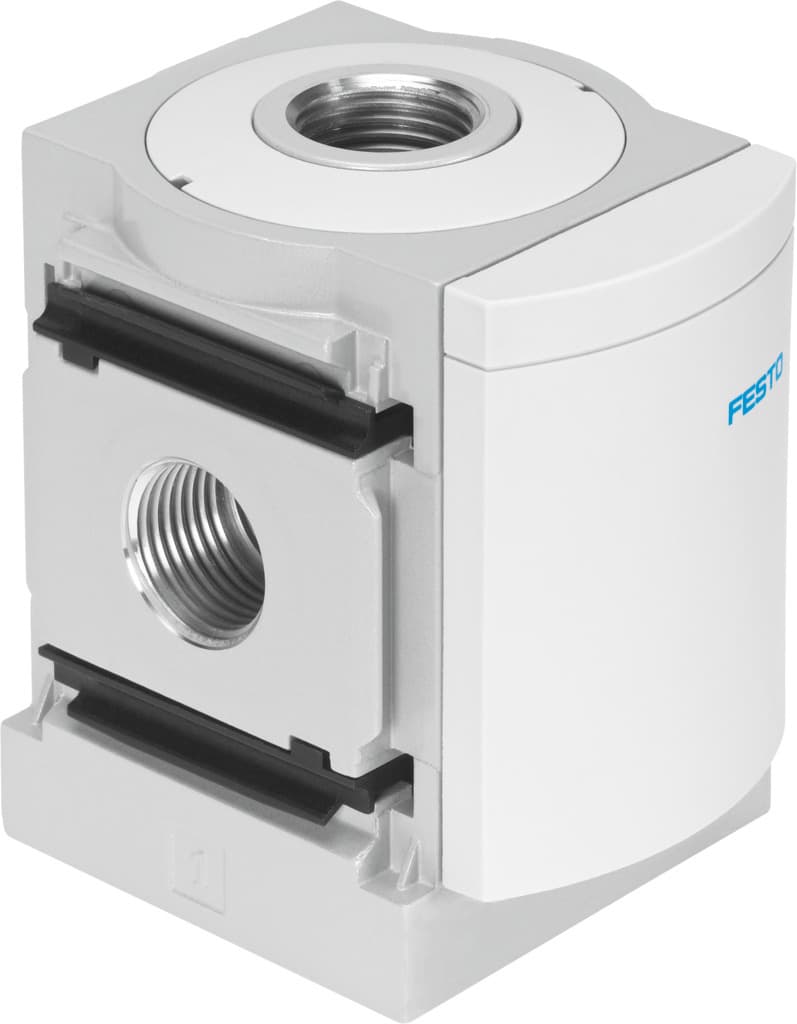

ms6n-frm-1/4
Selling Points
- 1The Festo MS6N-FRM-1/4 branching module offers integrated non-return functions to prevent the return flow of lubricated compressed air, ensuring reliable and efficient air distribution.
- 2This module supports various pneumatic connections, including ¼ NPT, y NPT, and ½ NPT, making it versatile for different pneumatic systems.
- 3With a standard nominal flow rate of 3200 liters per minute in the main flow direction, the MS6N-FRM-1/4 is ideal for high-demand applications requiring consistent air supply.
- 4The module is designed to operate within a pressure range of 0 to 20 bar, accommodating a wide range of pneumatic system pressures.
- 5Featuring moderate corrosion resistance (CRC 2), the MS6N-FRM-1/4 ensures durability in various environments, making it suitable for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Structural design | Branching module |
Symbol | 00991510 | Operating pressure | 0bar 20bar |
Standard nominal flow rate in main flow direction 1 -> 2 | 3300l/min | Standard nominal flow rate outlet at top | 6000l/min |
Standard nominal flow rate outlet down | 6400l/min | Operating voltage range AC | 0V 250V |
DC operating voltage range | 0V 125V | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 500g |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | 1/2 NPT | Pneumatic connection 4 | 1/2 NPT |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Manufacturer ID | 531965 |
Specifications may be subject to change without notice
