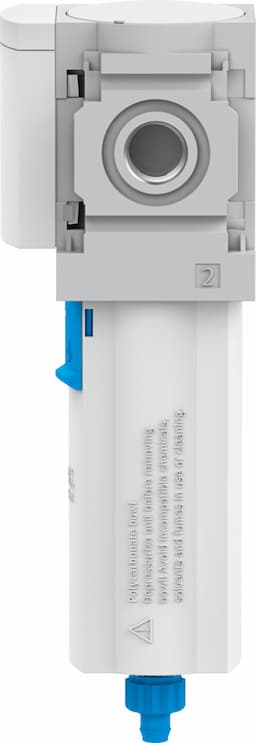

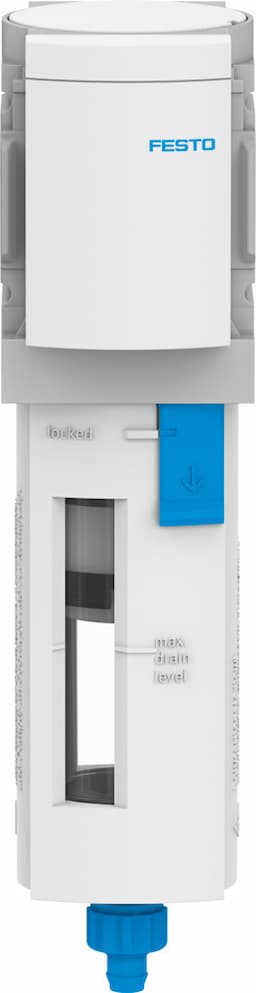

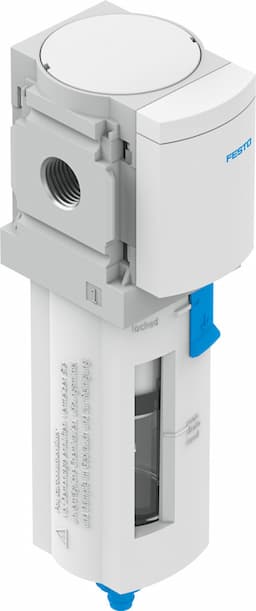

Product Model
ms6n-lfx-1/2-u
Selling Points
- 1The Festo MS6N-LFX-1/2-U active carbon filter is designed to remove gaseous oil particles and odors from compressed air, ensuring high air purity and meeting DIN ISO 8573-1 standards.
- 2This filter features a pre-filtration grade of 0.01 micron, which is essential for maintaining the quality of compressed air in industrial applications.
- 3The MS6N-LFX-1/2-U filter is available in various pneumatic connections, including ¼ NPT, y NPT, and ½ NPT, making it versatile for different industrial setups.
- 4With a standard nominal flow rate ranging from 24.7 to 42.4 scfm, this filter can handle a wide range of compressed air flow rates, ensuring efficient operation in various industrial environments.
- 5The filter cartridges should be replaced after 1,000 operating hours to maintain optimal performance and air quality, as recommended by Festo.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Mounting position | Vertical +/- 5° | Structural design | Active carbon filter |
Bowl guard | Integrated as metal bowl guard | Symbol | 00991519 |
Operating pressure | 0bar 20bar | Max. standard flow rate for air quality class | 900l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] Inert gas | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:1] |
Temperature of medium | 5°C 30°C | Residual oil content | 0.003mg/m3 |
Ambient temperature | -10°C 60°C | Product weight | 820g |
Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Note on materials | RoHS-compliant |
Compressed air filter material | Activated carbon | Housing material | Die-cast aluminum |
Material of bowl | Wrought aluminum alloy | Manufacturer ID | 531927 |
Specifications may be subject to change without notice
