Product Model
ms6n-lr
Selling Points
- 1The Festo MS6N-LFR filter regulator provides two filtration grades: 5 μm and 40 μm, ensuring high air purity in industrial environments.
- 2This filter regulator offers a wide range of pressure regulation, from 4.4 to 103 psi (D6) and 7.4 to 176 psi (D7), catering to various industrial needs.
- 3The MS6N-LFR is designed with corrosion resistance class 2 according to Festo standard 940 070, making it suitable for use in normal industrial environments.
- 4Available with or without a pressure display and electric output, the MS6N-LFR offers flexibility in its configuration to meet specific application requirements.
- 5The product is compatible with various pneumatic connections, including 1, 2¼, and ½ NPT, ensuring easy integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |

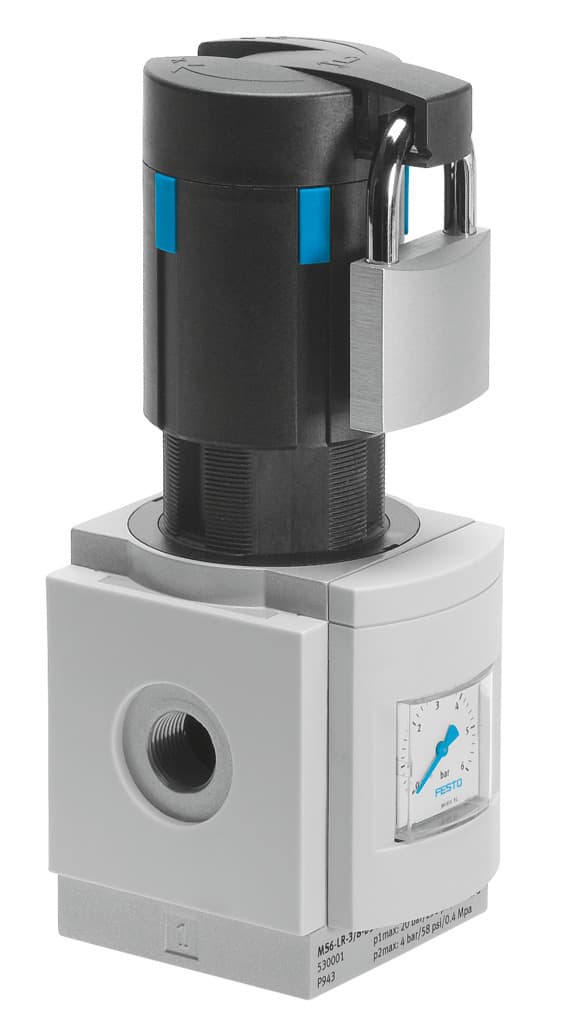

Actuator lock | Rotary knob with detent Rotary knob with integrated lock can be closed with accessories | Mounting position | Any |
Structural design | Pressure regulator with pressure gauge Pressure regulator without pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting |
Pressure gauge | G1/4 prepared G1/8 prepared with pressure sensor with pressure gauge with pressure gauge in rotary knob | Operating pressure | 0.8bar 20bar |
Pressure regulation range | 0.3bar 16bar | Max. pressure hysteresis | 0.25bar |
Standard nominal flow rate | 2200l/min 7500l/min | Certification | c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
ATEX category gas | II 2G | ATEX category for dust | II 2D |
Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
Explosive ambient temperature | -10°C <= Ta <= +60°C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Diaphragm material | NBR |
Separating disc material | POM | Manufacturer ID | 527664 |
Specifications may be subject to change without notice
